Removal and installation of rear seat folding arm rest - ra91001400175x(0175)

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Model 140; A. Sedan, B. Coupe

Preliminary work:

Rear seat and rear backrests removed (Removal and installation of rear seat and backrest )

Sedans

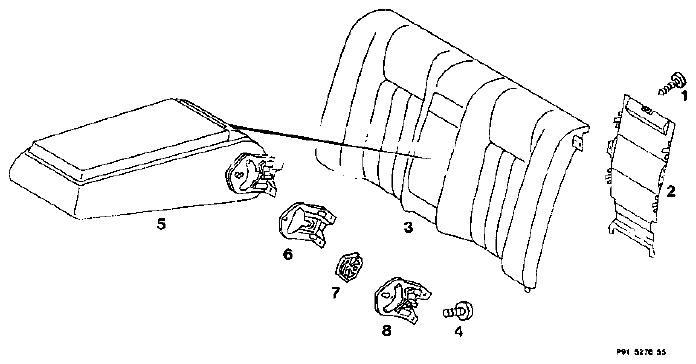

Fig 1: Identifying Folding Arm Rest For Rear Seat System Components (Sedans)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Rear backrest (3)	lay down with front side on a suitable clean surface.
Screws (1) on the cover (2)	screw out (5 each).
Cover (2) on backrest frame	unclip and remove.
Screws (4) on backrest frame (3)	screw out (4 each), 10 Nm.
Arm rest (5)	remove from backrest frame (3) to the rear.
Reinstall	in opposite order.

Coupes
Both rear seats and rear backrests removed (Removal and installation of rear seat and backrest ).

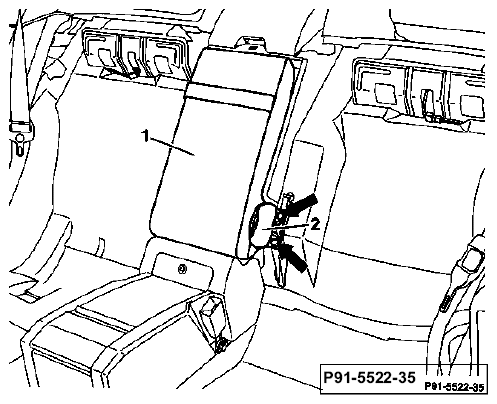

Fig 2: Identifying Folding Arm Rest For Rear Seat System Components (Coupes)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Screws (arrows)	screw out (4 each, 10 mm).
Arm rest (1)	remove from rear wall together with bearing plate (2).
Reinstall	in opposite order.
