Performing dimensional and comparative measurement at front and rear axle - AR40.30-P-0402B: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 140

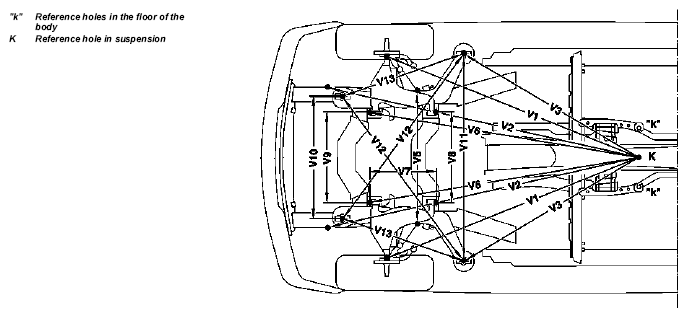

Front axle

Fig 1: Identifying Dimensional And Comparative Measurement At Front Axle - Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

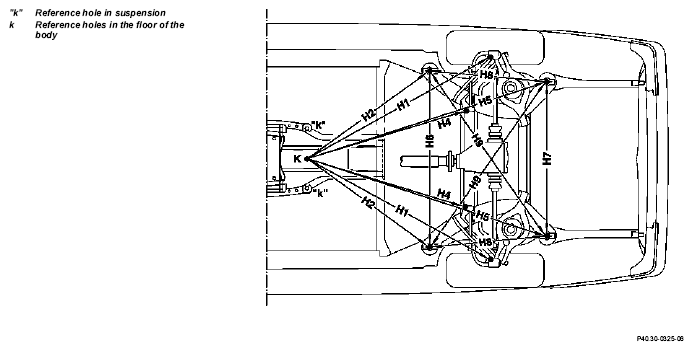

Rear axle

Fig 2: Identifying Dimensional And Comparative Measurement At Rear Axle - Model 140

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1	Preparation for dimensional and comparative measurement.	AR40.30-P-0401A
2	Performing dimensional and comparative measurement at front axle.	*BE40.30-P-1001-06A AR40.30-P-0402-01C
3	Performing dimensional and comparative measurement at rear axle.	*BE40.30-P-1001-05A AR40.30-P-0402-02B

TEST VALUES - DIMEN. AND COMPARATIVE MEASUREMENT - FRONT AXLE

Number	Designation			Model 140
BE40.30-P-1001-06A	Dimension	V1	mm	8
		V2	mm	4
		V3	mm	3
		V5	mm	1062±5
		V6	mm	3
		V7	mm	518±2
		V8	mm	706±3
		V9	mm	706±3
		V10	mm	860±2
		V11	mm	1460±2
		V12	mm	1450±3
		V13	mm	920±3
		Refer to illustration		AR40.30-P-0402-01C

TEST VALUES - DIMENSIONAL AND COMPARATIVE MEASUREMENT - REAR AXLE

Number	Designation			Models 140
BE40.30-P-1001-05A	Dimension	H1	mm	4
		H2	mm	3
		H3	mm	1330 5 c
		H4	mm	4
		H5	mm	6
		H6	mm	1250 ±2
		H7	mm	1096 ±2
		H8	mm	3
		H9	mm	3
		Refer to illustration		AR40.30-P-0402-02B

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Identifying Suspension (170 589 00 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 6: Identifying Measuring Fixture Set (140 589 09 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 7: Identifying Connecting Parts (124 589 08 63 00)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
