Removing and installing multi-disk brake B2, disk pack B3 and park pawl gear - AR27.50-P-0781A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.6
| Disassembling | |||
|---|---|---|---|
| 1 | Detach transmission housing from torque converter housing | AR27.50-P-0601A | |
| Bracket for transmission housing | WF58.50-P-2750-03A | ||

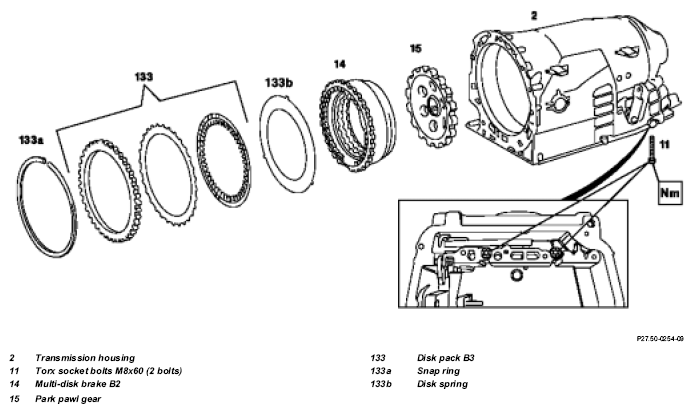

| 2 | Remove disk pack B3 (133) and disk spring (133b) by removing snap ring (133a) in transmission housing | ||
| 3 | Unscrew torx socket bolts (11) | ||
| 4 | Remove multi-disk brake B2 (14) from transmission housing | According to findings: ↓ Disassembling and assembling multi-disk brake B2. |
AR27.50-P-0880A |
| 5 | Remove park pawl gear (15) | ||
| Assembling | |||
| 6 | Insert park pawl gear (15) | ||
| 7 | Install multi-disk brake B2 (14) in transmission housing (2) | ||
| 8 | Screw in torx socket bolts (11) | *BA27.40-P-1005-01A | |
| 9 | Insert and measure disk spring (133b) and disk pack B3 (133) | AR27.50-P-0780-11A | |
| Survey of multiple-disk components, production details | Transmission 722.6 | GF27.51-P-5200A | |
| 10 | Fit snap ring (133a) | ||
| 11 | Attach transmission housing to torque converter housing | AR27.50-P-0601A |
| Number | Designation | Transmission 722.6 except 722.660/661/66 2/663/666/674 | ||
|---|---|---|---|---|
| BA27.40-P-1005-01A | Bolt, multi-disk brake B2 to transmission housing | 1st stage | Nm | 16 |
| 2nd stage | ∠ | - | ||
