Bracket for transmission housing - WF58.50-P-2750-03A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 722.6

Drawing

Material St 37-2

Fig 1: Identifying Bracket For Transmission Housing Dimensions
G04625191Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

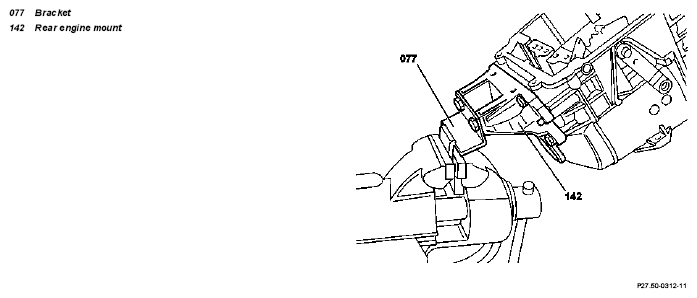

Fig 2: Identifying Bracket And Rear Engine Mount
G04625192Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
