Removal and installation of control pressure cable with vacuum actuator - AR27.10-P-0200A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.5
| Removal, installation | |||
| 1 | Remove air cleaner | AR09.10-P-1050D | |
| 2 | Press off ball socket, compress plastic clips with pliers and remove control pressure cable from throttle linkage on engine | ||
| 3 | Disconnect all vacuum lines on the vacuum actuators of the control pressure cable | ||

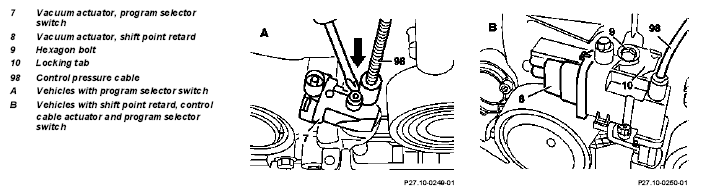

| 4 | Loosen control pressure lock on transmission with a screwdriver (arrow) | Version A | |
| 5 | Loosen hexagon bolt (9) and twist lock plate (10) upwards using a screwdriver | Version B | |
| 6 | Turn control pressure sideways and remove from the transmission | ||
| Control pressure cable with vacuum actuators standardized | Transmissions 722.3/4/5 | BT27.10-P-0003-01A | |
| 7 | Install in reverse sequence | ||
| 8 | Basic setting of control pressure cable (after replacement) | AR27.10-P-0220A | |
| 9 | Adjust control pressure cable on throttle linkage | AR27.10-P-0120A |
