Basic adjustment of control pressure cable (after replacing) - AR27.10-P-0220A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.5
| Removing, installing | |||
| 1 | Remove transmission oil pan | AR27.35-P-0320A | |

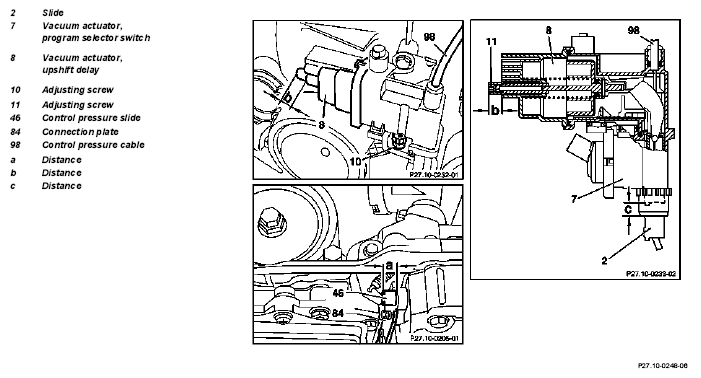

| 2 | Transfer dimensions "b" and "c" from old control pressure cable to the new one | Basic setting of control pressure cable |
|
| Inspecting | |||
| 3 | Connect tester to the Y distributor of the vacuum element (7) | Fig 2 | |
| Risk of accident as a result of vehicle starting off when engine running. Risk of injury as a result of bruises and burns if you insert your hands into engine when it is being started or when it is running. | Secure vehicle to prevent it starting off. Wear closed and close-fitting work clothes. | AS00.00-Z-0005-01A | |
| 4 | Run engine at idle speed and check vacuum | Do not grasp hot or rotating parts. | *BE27.10-P-1001-03A |
| 5 | Measure distance "a" between end face of control pressure slide (46) and connection plate (84) | *BE27.10-P-1002-03A | |
| 6 | Install in the reverse order | ||
| 7 | Test transmission upshift delay | AR27.10-P-0140A |
TEST VALUES OF CONTROL PRESSURE CABLE
| Number | Designation | Transmission 722.5 | ||
|---|---|---|---|---|
| BE27.10-P-1001-03A | Vacuum at vacuum actuator, control pressure cable at idle speed | Program selector switch position "E" | mbar | approx. 400 |
| Program selector switch position "S" | mbar | 0 | ||
| BE27.10-P-1002-03A | Distance from end face of control pressure slide to connector plate | mm | 7 | |
