Removal and installation of bottom cover with intermediate plate - AR27.35-P-0360A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.5
| Removal, installation | |||

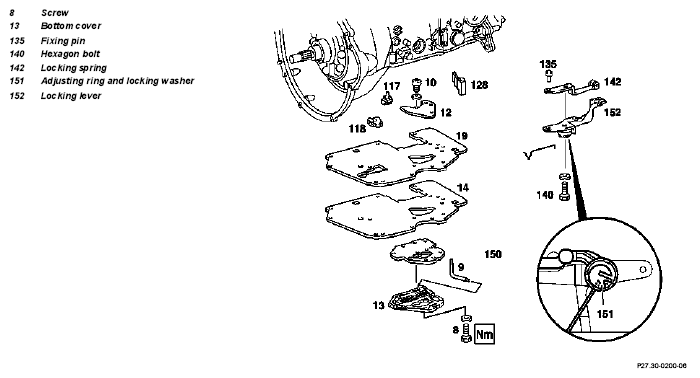

| 1 | Remove shift valve housing | AR27.35-P-0320A | |
| 2 | Turn adjusting ring and locking washer (15) clockwise using a screwdriver and unhook connecting linkage | ||
| AR27.35-P-0360-02A | |||
| 3 | Remove locking spring (142) and fixing pin (135) | ||
| *BA27.35-P-1002-02A | |||
| 4 | Unscrew electrical cables at kick-down solenoid valve (Y3/1y1) and at control valve for 5th gear (Y3/1y2) | AR27.50-P-0360-03A | |
| 5 | Detach bottom cover with intermediate plate and oil tube complete from transmission | ||
| *BA27.35-P-1001-02A | |||
| Detach bottom cover (13) from large intermediate plate | AR27.35-P-0380A | ||
| Feed B1 enlarged | Transmission 722.5 | BT27.40-P-0001-01A | |
| 6 | Remove control valve for 5th gear | AR27.35-P-0360-01A | |
| 7 | Install in reverse sequence |
TEST VALUES OF BOTTOM COVER
| Number | Designation | Transmission 722.5 | |
|---|---|---|---|
| BE27.35-P-1001-01A | Play between shift lock-out stop and locking plate | mm | 0 - 0.05 |
| Number | Designation | Transmissions 722.3/5 | Transmission 722.4 | |
|---|---|---|---|---|
| BA27.35-P-1001-02A | Bolt, bottom cover to transmission housing | Nm | 8 | 8 |
| BA27.35-P-1002-02A | Bolt, detent spring to bottom cover | Nm | 8 | - |
