Dismantling and assembling transmission (section 2) - AR27.50-P-0620A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

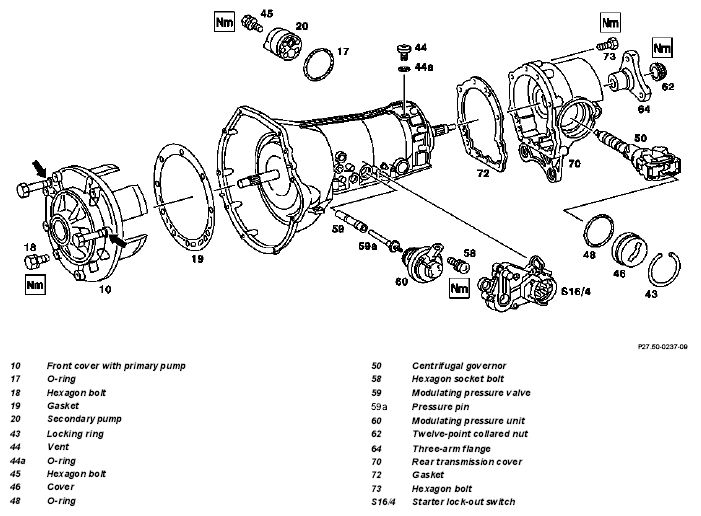

TRANSMISSION 722.5
| Dismantling, assembling | |||
| 1 | Dismantling transmission (section 1) | AR27.50-P-0600A | |
| 2 | Remove vacuum unit (60) | AR27.10-P-0260A | |
| 3 | Remove starter lock-out switch (S16/4) | AR27.10-P-0240A | |
| 4 | Remove secondary pump | AR27.10-P-0300A | |
| 5 | Remove vent (44) and O-ring (44a) | ||
| 6 | Remove front transmission cover (10) with primary pump | AR27.30-P-0640A | |
| Dismantle front transmission cover | AR27.30-P-0660A | ||
| 7 | Remove three-arm flange (64) | AR27.50-P-0620-01A | |
| *BA27.50-P-1001-01A | |||
| 8 | Detach locking ring (43), cover (46) and O-ring (48) | ||
| 9 | Remove centrifugal governor (50) | AR27.10-P-0280A | |
| 10 | Remove rear transmission cover (70) | AR27.30-P-0680A | |
| Assembling rear transmission cover | AR27.30-P-0700A | ||
| 11 | Assemble in reverse sequence | ||
| 12 | Dismantling and assembling transmission (section 3) | AR27.50-P-0720A |
| Number | Designation | Transmissions 722.3/4/5 | |
|---|---|---|---|
| BA27.50-P-1001-01A | Collared nut, output flange to output shaft | Nm | 120 |
