Remove/install rear transmission cover - AR27.30-P-0680A

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

TRANSMISSION 722.5

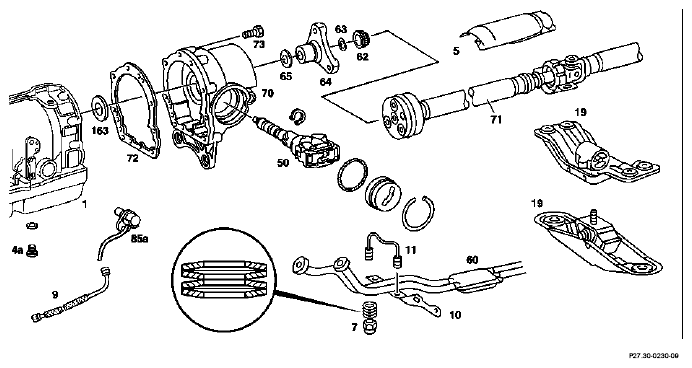

Fig 1: Identifying Rear Transmission Cover Components
G04679379Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Remove/install
1 Unscrew oil drain screw (4a) and drain transmission oil TORQUE SPECIFICATION *BA27.10-P-1001-03A
2 Support transmission NOTES Components can be damaged if the transmission lowers
3 Remove engine crossmember   ra22001042120x
4 Remove rear engine mount
5 Remove exhaust bracket (10) and U-bracket (11) by removing self-locking nuts (7) IMPORTANTInstallation  : Replace self-locking nuts
6 Unhook exhaust system (60) at the rear mount IMPORTANT Detach using a V-belt
7 Remove shield (5)
8 Unscrew front propeller shaft (71) to transmission Model 124 ra4100107b050x
    Model 129 AR41.10-P-0050A
    Model 140 AR41.10-P-0050DA
    Model 210 AR41.10-P-0050B
9 Remove centrifugal governor (50)   AR27.10-P-0280A
10 Remove speedometer shaft (9) and/or inductive sensor (85a)
11 Detach connector at valve unit
12 Remove three-arm flange (64) NOTES Replace twelve-point collar nut AR27.50-P-0620-01A
    SPECIAL TOOL Socket wrench bit Fig 2
    TORQUE SPECIFICATION *BA27.50-P-1001-01A
13 Remove washer (65)
14 Remove secondary pump up to transmission no. 3652931 AR27.10-P-0300A
REFER TO COMPONENT MODIFICATIONS Secondary pump dispensed with Transmission 722.5 BT27.10-P-0002-01A
15 Unscrew hexagon bolts (73) IMPORTANTInstallation  : Degrease bolts and coat with non-curing sealant *BR00.45-Z-1006-01A
    TORQUE SPECIFICATION *BA27.30-P-1001-02A
16 Remove rear transmission cover (70) IMPORTANT Replace gasket (72)
NOTES The output shaft must NOT be pulled out of the housing. Ring gear and clutch body cannot be pushed back into the clutch disks.
The transmission must be removed in this case
17 Fit shims (163) on output shaft The shims (163) may be stuck to the grooved ball bearing in the rear cover
IMPORTANT According to condition: ↓
    Disassemble rear transmission cover AR27.30-P-0700A
18 Install in the reverse order
19 Fill transmission IMPORTANT without changing oil filter AP27.10-P-2702AA
20 Check oil level in automatic transmission and correct if necessary.   AR27.00-P-0100A
TORQUE SPECIFICATION OIL PAN, AUTOMATIC TRANSMISSION

Number Designation Transmissions 722.4/5/7
BA27.10-P-1001-03A Drain plug on transmission oil pan Nm 22
TORQUE SPECIFICATION REAR TRANSMISSION COVER

Number Designation Transmission 722.3/4/5
BA27.30-P-1001-02A Bolt, rear transmission cover to transmission housing or adapter housing Nm 13
TORQUE SPECIFICATION GEAR ASSEMBLY

Number Designation Transmission 722.3/4/5
BA27.50-P-1001-01A Collar nut, output flange to output shaft Nm 120
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1006-01A Loctite 573 Henkel Loctite Deutschland GmbH Arabellastrasse 17
81925 Munchen
Germany
Tel. +49 899268-0
Fax + 49 899101978
www.Loctite.de
Fig 2: Identifying Wrench Socket (126 589 02 09 00)
G04679380Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
