Removal and installation of vacuum unit - AR27.10-P-0260A
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
TRANSMISSION 722.5

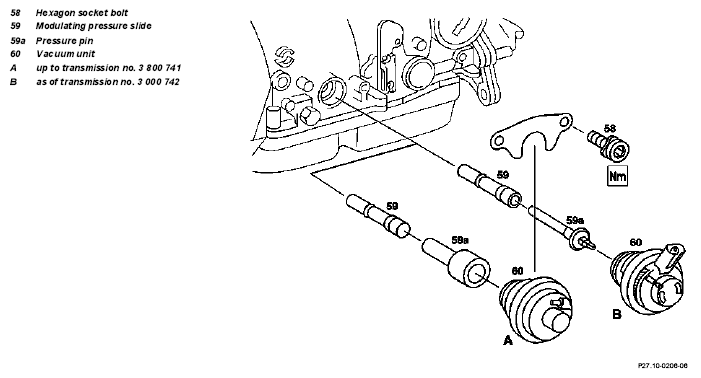

| Figure item, etc. | Notes on work | ||
|---|---|---|---|
| Check or adjust modulating pressure | AR27.10-P-0180A | ||
| 58 | Hexagon socket bolts | *BA27.10-P-1001-01A | |
| 59, 59a | Modulating pressure slide, pressure pin to compensate for thermal expansion | Check for ease of movement, replace if necessary | |
| 60 | Vacuum unit | ||
| Vacuum unit for modulating pressure adjustment modified | Transmission 722.5 | BT27.10-P-0001-01A |
| Number | Designation | Transmission 722.3/4/5 | |
|---|---|---|---|
| BA27.10-P-1001-01A | Bolt, vacuum unit to transmission | Nm | 8 |
