Dismantling and assembling transmission (section 1) - AR27.50-P-0600A: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

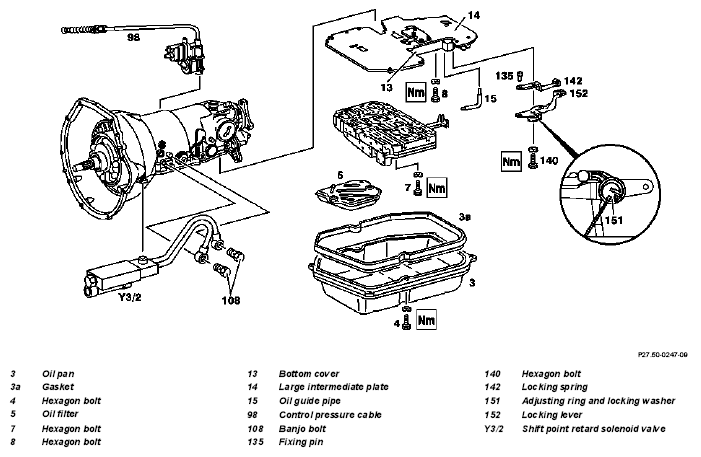

TRANSMISSION 722.5
| Dismantling, assembling | |||
| 1 | Remove transmission with torque converter | AR27.10-P-0500A | |
| 2 | Remove control pressure cable (98) with vacuum actuator | AR27.10-P-0200A | |
| 3 | Remove switchover valve (Y3/2) for shift point retard | Vehicles with catalytic converter and shift point retard by means of solenoid valve. | |
| 4 | Fasten transmission on assembly bracket | AR27.10-P-0600-01A | |
| 5 | Remove shift valve housing (9) | AR27.35-P-0320A | |
| 6 | Remove bottom cover (13) with intermediate plate (14) | AR27.35-P-0360A | |
| 7 | Remove one-way valves, B2 brake band guide, oil deflector and temperature throttle from transmission housing | AR27.50-P-0600-03A | |
| One-way valve dispensed with | Transmission 722.5 | BT27.50-P-0007-01A | |
| 9 | Assemble in reverse sequence | ||
| Dismantling transmission (section 2) | AR27.50-P-0620A |
| Number | Designation | Transmission 722.3/4/5 | |
|---|---|---|---|
| BA27.50-P-1001-01A | Collared nut, output flange to output shaft | Nm | 120 |
