Replacing oil pump chain - AR18.10-P-2140HW: Notes
WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 601, 602, 603 (except, 602.982)
| Removing, installing | |||
|---|---|---|---|
| 1 | Remove oil pan (10) | Engine 601, 602 in model 124, 201 Engine 603 in model 124 except 603.913/963 Engine 603 in model 126 |
AR01.45-P-7500HZ |
| Engine 603.913/963 in model 124 | AR01.45-P-7500HX | ||
| Engine 603.971 in model 140 | AR01.45-P-7500HY | ||

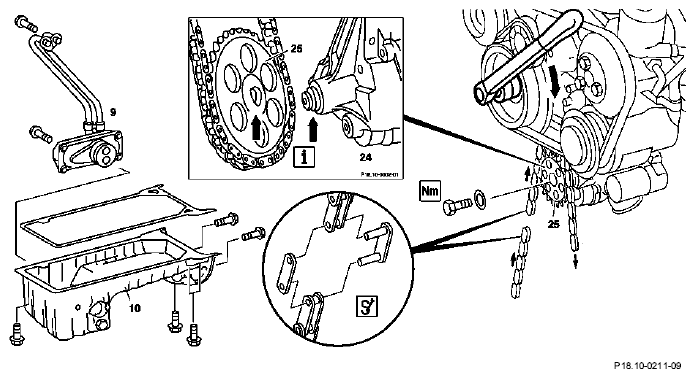

| 2 | Remove oil pump sprocket (25) | Install oil pump sprocket (25) with timing chain fitted on, with convex face (arrows) pointing toward oil pump (24). |
|
| 2 | Separate oil pump chain | AR18.10-P-2140-01HA | |
| Figure | |||
| Figure | |||
| Figure | |||
| Figure | |||
| 4 | Rivet oil pump chain | AR18.10-P-2140-02HA | |
| Figure | |||
| Figure | |||
| *BA18.10-P-1001-01A | |||
| 5 | Install in the reverse order |
| Number | Designation | Engine 601, 602 except 602.98, 603 | |
|---|---|---|---|
| BA18.10-P-1001-01A | Bolt of chain sprocket to oil pump | Nm | 25 |
