Replacing centering sleeve - AR41.10-P-0200DA: Notes

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 129, 140, 170, 202, 208

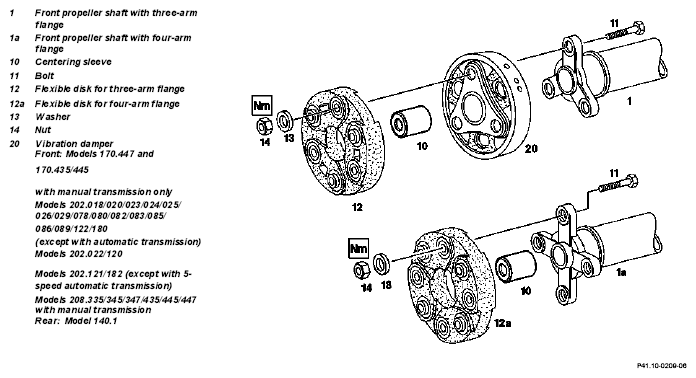

Fig 1: Exploded View Of Centering Sleeve Removal/Install Components
G04685466Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove propeller shaft Model 129 AR41.10-P-0050A
    Model 140 AR41.10-P-0050DA
    Models 202, 170, 208 AR41.10-P-0050EA
2 Mark flexible disks (12, 12a) relative to two-arm or four-arm flange and detach IMPORTANTInstallation  : Check flexible disk for damage and replace if necessary
NOTES Replace self-locking nuts
    TORQUE SPECIFICATION Flexible disk on front propeller shaft *BA41.10-P-1001-01A
    TORQUE SPECIFICATION Flexible disk on rear propeller shaft *BA41.10-P-1002-01A
3 Loosen fitted sleeves of flexible disks   AR41.10-P-0050-09DA
REFER TO SHOP-MADE TOOLS Drift punch for loosening fitted sleeves in the flexible disks   WF58.50-P-4110-01A
4.1 Detach vibration damper (20) from front propeller shaft Models 170.447 and 170.435/445 and 208.335/345/347/435/445/447/, with manual transmission
Models 202.018/020/023/024/025/026/029/ 078/080/082/083/085/086/089/ 122/180 with manual transmission
Models 202.022/120
Models 202.121/182 (except with 5-speed automatic transmission)
    IMPORTANTInstallation  : Fit vibration damper and propeller shaft as per the applied marking AR41.30-P-0100-01A
REFER TO COMPONENT MODIFICATIONS Vibration damper on front propeller shaft Models 202.018/020 with automatic transmission.
Vibration damper is no longer used		 BT41.10-P-0002-01A
5.1 Mark vibration damper relative to rear propeller shaft and detach Model 140.1
IMPORTANTInstallation  : Fit vibration damper as marked
Observe technical modification: ↓		 AR41.10-P-0200-05DA
REFER TO COMPONENT MODIFICATIONS Vibration damper on rear propeller shaft Model 140.1 ab 15.9.91  BT41.10-P-9109-01DA
6 Separate front and rear propeller shaft at clamped joint or slide IMPORTANTInstallation  : Smear splined shaft profile with Molykote grease ↓
REFER TO CAPACITIES & SPECIFICATIONS   Long-life greases (NLGI class 2) BB00.40-P-0266-02A
    Assemble propeller shaft
Observe technical modifications: ↓		 AR41.10-P-0050-05DA
REFER TO COMPONENT MODIFICATIONS Propeller shaft clamped joint Models 129, 140, 202  BT41.10-P-9110-01DA
REFER TO COMPONENT MODIFICATIONS Universal joint on rear propeller shaft Model 140.050/051  BT41.10-P-9111-02DA
REFER TO COMPONENT MODIFICATIONS Rear propeller shaft Model 140.03/1  BT41.10-P-9111-01DA
INSPECT Checking
7 Check centering sleeve in front and rear propeller shaft IMPORTANT If the sealing lip in the centering sleeve (10) is worn or damaged, the centering sleeve can be replaced individually.
8.1 Remove centering sleeve (10) If necessary after checking AR41.10-P-0200-02DA
    IMPORTANTInstallation  : press in centering sleeve (press-in distance of centering sleeve), see:↓
    Models 129, 140 AR41.10-P-0200-03DA
    Model 202 with 5-speed manual and automatic transmission AR41.10-P-0200-03DB
    Model 202 with 6-speed manual transmission AR41.10-P-0200-03DI
    Models 170, 208 AR41.10-P-0200-03DC
9 Pack cavities in the two centering sleeves with grease FLUID SPECIFICATION *BF41.10-P-1001-01A
10 Install in reverse order
TORQUE SPECIFICATION PROPELLER SHAFT

Number Designation Model 129 Model 140 Model 170
BA41.10-P-1001-01A Self-locking nut of flexible disk on transmission or front propeller shaft M10 Nm 40 - 40
M12 Nm 60 60 60
BA41.10-P-1002-01A Self-locking nut of flexible disk on rear propeller shaft or rear axle center assembly M10 Nm 40 - 40
M12 Nm 60 60 60
BA41.10-P-1003-01A Clamping nut of propeller shaft   Nm 40 40 -
TORQUE SPECIFICATION PROPELLER SHAFT

Number Designation Model 202 Model 208
BA41.10-P-1001-01A Self-locking nut of flexible disk on transmission or front propeller shaft M10 Nm 40 40
M12 Nm 60 60
BA41.10-P-1002-01A Self-locking nut of flexible disk on rear propeller shaft or rear axle center assembly M10 Nm 40 40
M12 Nm 60 60
BA41.10-P-1003-01A Clamping nut of propeller shaft   Nm 40 -
FLUID SPECIFICATION PROPELLER SHAFT

Number Designation Model 129 Model 140 Model 170
BF41.10-P-1001-01A Quantity of grease Propeller shaft centering sleeve g 6 6 6
Specifications for Service Products Sheet BB00.40-P-0267-00A BB00.40-P-0267-00A BB00.40-P-0267-00A
FLUID SPECIFICATION PROPELLER SHAFT

Number Designation Model 202 Model 208
BF41.10-P-1001-01A Quantity of grease Propeller shaft centering sleeve g 6 6
Specifications for Service Products Sheet BB00.40-P-0267-00A BB00.40-P-0267-00A
