Removing and installing electronic accelerator actuator with throttle valve body - AR30.20-P-1262E

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 119.97

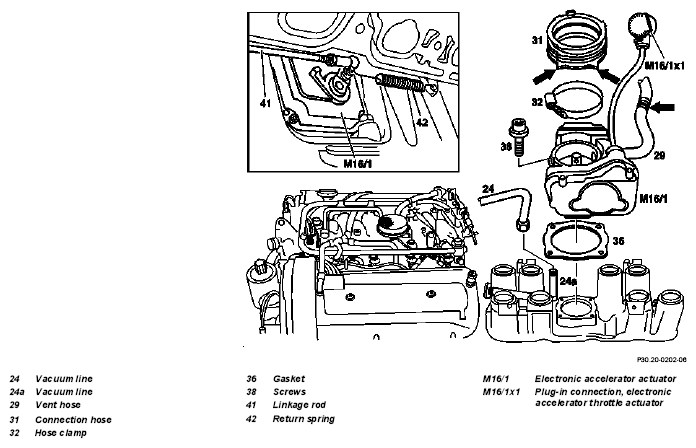

Fig 1: Identifying Electronic Accelerator Actuator With Throttle Valve Body - Engine 119.97
G04684640Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVINGINSTALLING Removing, installing
1 Remove, install hot-wire airflow sensor   AR07.41-P-1453E
2 Loosen hose clamp (32) and remove connecting hose (31). IMPORTANT Note installation position (arrows). *WH58.30-Z-1002-06A
3 Undo plug-in connection on throttle actuator (M16/1x1) to release wire. IMPORTANT When replacing the throttle actuator ensure that the wiring is routed correctly.
  Wiring for electronic accelerator pedal Model Series 124.036 up to 06/93 AR30.20-P-1262-01A
  Wiring for electronic accelerator pedal Model Series 124.034 AR30.20-P-1262-01B
REFER TO COMPONENT MODIFICATIONS Routing of wiring for electronic accelerator pedal changed Model Series 124.036 starting 07/93 BT30.20-P-0001-01A
4 Detach linkage rod (41) and return spring (42). IMPORTANT Note installation position of return spring (42).
5 Unscrew vacuum line (24, 24a) from brake booster. SPECIAL TOOL Fig 2
6 Pull off vent hose (29) for positive crankcase ventilation at separation point (arrow).
7 Unscrew bolts (38). IMPORTANT Replace microencapsulated bolts.
    TORQUE SPECIFICATION *BA30.20-P-1001-01A
8 Tilt electronic accelerator pedal throttle actuator (M16/1) with control-side throttle-body opening upward, then rotate 1/4 turn counterclockwise to remove. IMPORTANT Clean joint surface and replace gasket (36). Place gasket with Hylomar on the actuator. *BR00.45-Z-1010-01A
9 Install in the reverse order
10 Adjust throttle control With ASR Code 471a AR30.10-P-1010EA
    Without ASR Code 471a AR30.10-P-1010EB
TORQUE SPECIFICATION ELECTRONIC ACCELERATOR PEDAL ACTUATOR

Number Designation Engine 119, 120
BA30.20-P-1001-01A Bolt, electronic accelerator throttle actuator to intake manifold Nm 25
Fig 2: Identifying Ring Wrench Bit (000 589 70 03 00)
G04684641Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1002-06A 7 mm socket hexagon on flexible shaft for hose clamps with worm drive
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1010-01A Sealant A 001 989 25 20
