Adjusting throttle control - AR30.10-P-1010EA

WARNING: This page does not describe the selected car, but rather 42 other vehicles, including the 1999 Mercedes-Benz S600, 1999 Mercedes-Benz S500, 1999 Mercedes-Benz S420, 1999 Mercedes-Benz S320, and 1999 Mercedes-Benz CL600. However, it is still accessible from the selected car via links, so may be relevant.

ENGINE 119.97 with CODE (471a) Acceleration slip regulation (ASR)

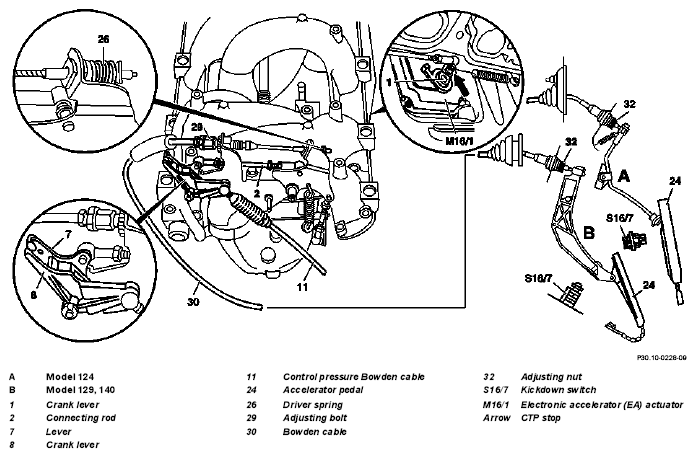

Fig 1: Identifying Throttle Control Components - Engine 119.97 With Code (471a)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Inspecting
	Ignition: OFF
1	Inspect ease of operation and condition of Bowden cable (30) and throttle control rods	If necessary replace
2	Detach connecting rod (2) at one side
3	Inspect CTP stop	Crank lever must be resting against CTP stop (arrow) of electronic accelerator (EA) actuator (M16/1) (stop audible)
4	Attach connecting rod (2) at one side
	Adjusting control pressure Bowden cable (11)
5.1	Turn connecting rod (2)	Left-hand steering For this step, the tips at the crank lever (8) and lever (7) must be positioned exactly opposite when control pressure Bowden cable is attached. Lock nuts at ball sockets	*BE30.10-P-1001-01C
	Crank lever of right-hand steering/left-hand steering standardized		BT30.10-P-0001-01A
5.2	Turn connecting rod	Right-hand steering	AR30.10-P-1010-01E
	Crank lever of right-hand steering/left-hand steering standardized		BT30.10-P-0001-01A
	Setting WOT
6	Ignition: ON	The ignition must be switched on otherwise the throttle valve does not move to wide open throttle (WOT)
7	With engine switched off, depress accelerator pedal (24) from inside the car as far as the stop at kickdown switch (S16/7) (do not operate kickdown switch!)	Crank lever (1) must be resting against WOT stop of electronic accelerator (EA) actuator (M16/1) (stop audible); alter position of adjusting nut (29), if necessary. If the throttle control linkage is operated from the engine compartment when the ignition is switched on, the EA control module switches to emergency running mode and a fault is stored in the fault memory. Read fault memory
	Setting CTP
8	Inspect CTP stop	Driver spring (26) at Bowden cable must be making contact free of play; alter position with adjusting bolt (32), if necessary
9	Grease Bowden cable (30) with corrosion protection grease between end pieces and guide piece		*BR00.45-Z-1006-06A

INSPECTION SPECIFICATIONS OF THROTTLE CONTROL

Number	Designation		Engine 119.97
BE30.10-P-1001-01C	Length of connecting rod (LHS)	mm	134
BE30.10-P-1002-01C	Length of connecting rod (RHS)	mm	66

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1006-06A	Grease	A 001 989 37 51 10
