Removing and installing handset on center console - AR82.70-P-8916A

MODEL 170, 202 as of 1.9.95, 210 with CODE (314a) D-network "Standard" telephone

Model 202 shown

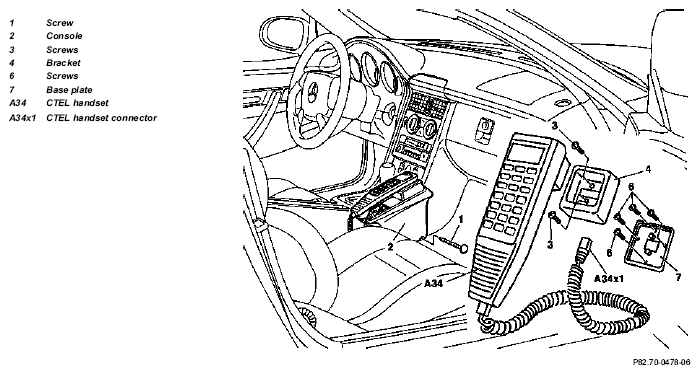

Fig 1: Identifying Handset On Center Console Components - Model 202

Model 170 shown

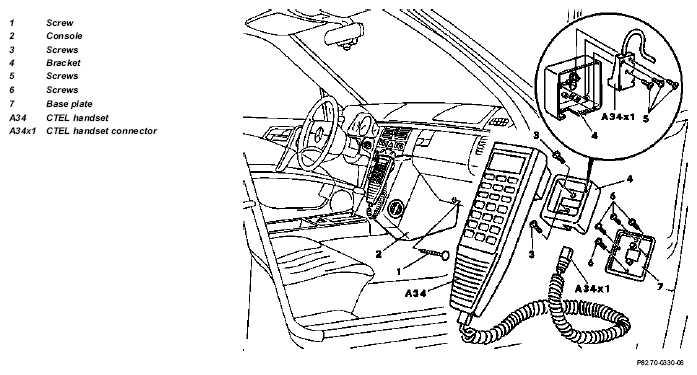

Fig 2: Identifying Handset On Center Console Components - Model 170

	Removing, installing
1	Remove CTEL handset (A34)	Disconnect CTEL handset (A34) at connector (A34x1)
2	Remove radio	Except model 170	AR82.60-P-7502EA
3	Fold up cover on center console (screwed)	refer to ↓ Model 202: Remove cover on center console	AR68.20-P-2350E
		Model 210: Remove cover on center console	AR68.20-P-2350F
4	Remove cover on shift lever	Model 170	AR68.20-P-2310G
5	Remove console (2)	The console (2) is inserted in the center console and secured with screw (1)
6	Install in reverse order
