Removing and installing cover on center console - AR68.20-P-2350E

MODEL 202

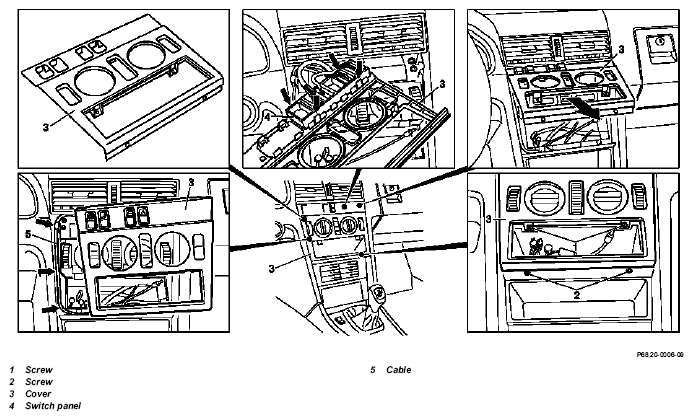

Fig 1: Identifying Cover On Center Console Remove/Install Components - Model 202

	Removal, installation
1.1	Remove radio	Vehicles with radio	AR82.60-P-7502EA
2	Unscrew screws (1 and 2)
3	Pull cover (3) out at bottom, lift to horizontal position and then pull back at top, reinstall
4	Unclip switch panel (4) on cover (3) (arrows), clip in	When installing, position cable (5) at side (arrows).
5	Put cover (3) down to one side
6	Reinstall in opposite order
