Removing and installing cover on center console - AR68.20-P-2350F

MODEL 210

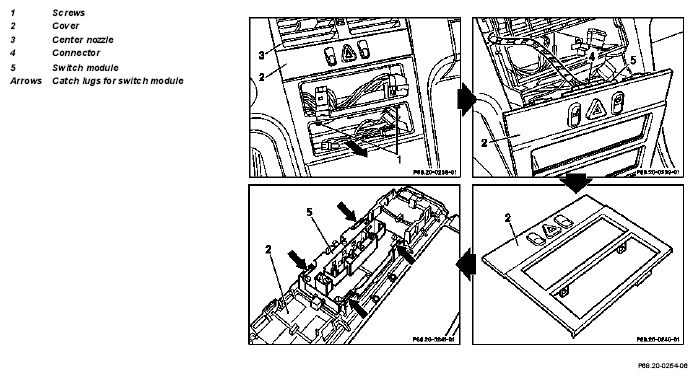

Fig 1: Identifying Cover On Center Console Remove/Install Components - Model 210

	Removal, installation
1	Remove radio		AR82.60-P-7502EA
2	Unscrew screws (1)
3	Pull cover (2) back at bottom and remove at top on center nozzle housing (3)	On vehicles with air conditioning (automatic) (code 581a) previously remove the push-button control module (radio mount)
4	Disconnect connector (4) on switch module (5)
5	Put down cover (2)
6	Unclip switch module (6) (4 catch lugs, arrows) and remove from cover (2)
7	Reinstall in opposite order
