Water pump pulley removal: Notes
WARNING: This page is about a different variant/trim than selected.

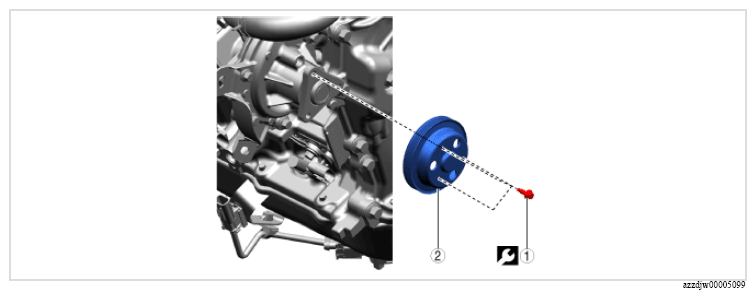

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Bolt (See WATER PUMP COMPONENT REMOVAL NOTE ) |
9.5 N.m {97 kgf.cm, 84 in.lbf} |
| 2 | Water pump pulley | - |
