Water Pump Component Removal Note

WARNING: This page is about a different variant/trim than selected.

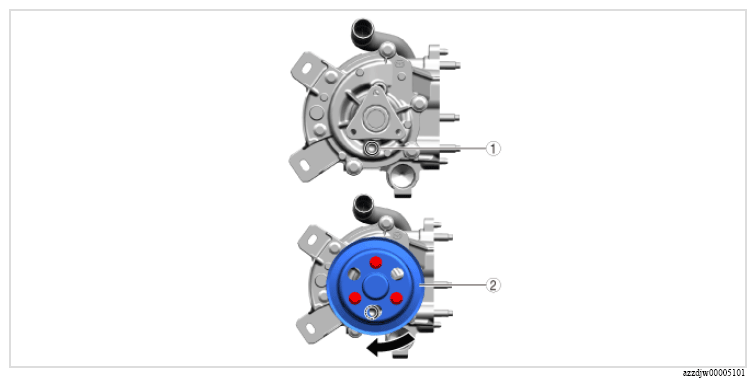

  1. Align the holes of the water pump pulley with those of the water pump as shown in the figure.
    G16691996Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Hole
    2 Water pump pulley

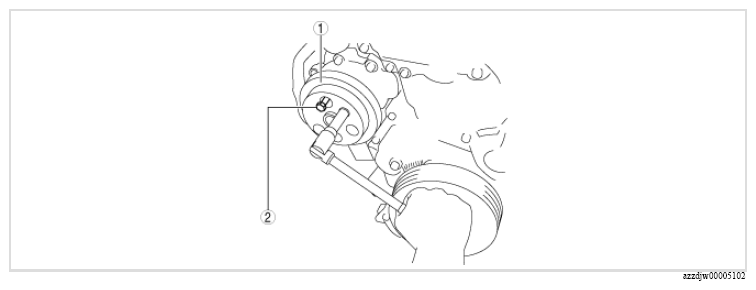

  2. Insert an appropriate bolt (approximately 70 mm {2.8 in} in length) into the hole of the water pump as shown in the figure to lock the rotation of the water pump pulley.
    G16691997Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Water pump pulley
    2 Bolt
  3. Remove the bolt used for rotation stop.
