Remove Driver Side Front Deflector: Notes
WARNING: This page is about a different variant/trim than selected.

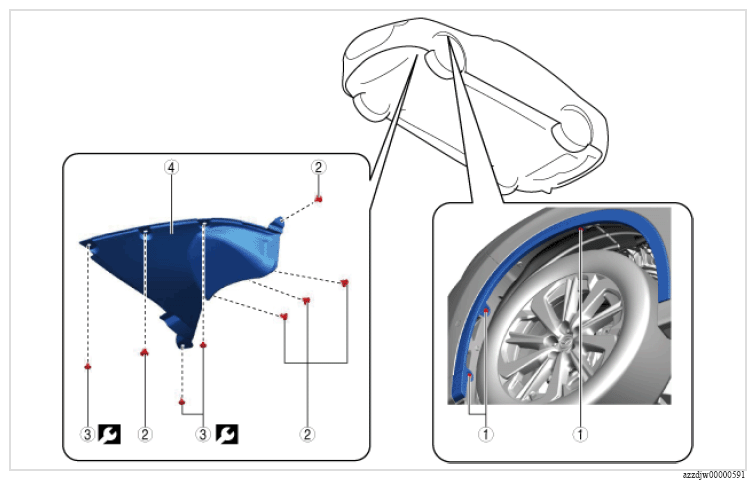

- Remove using the procedure shown in the figure.
- The figure shows the left side (same as right side).
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Fastener | - |
| 2 | Fastener (See Fastener removal note ). |
- |
| 3 | Screw | 2 N.m {20 kgf.cm, 17 in.lbf} |
| 4 | Front deflector | - |
