Fastener removal note

WARNING: This page is about a different variant/trim than selected.

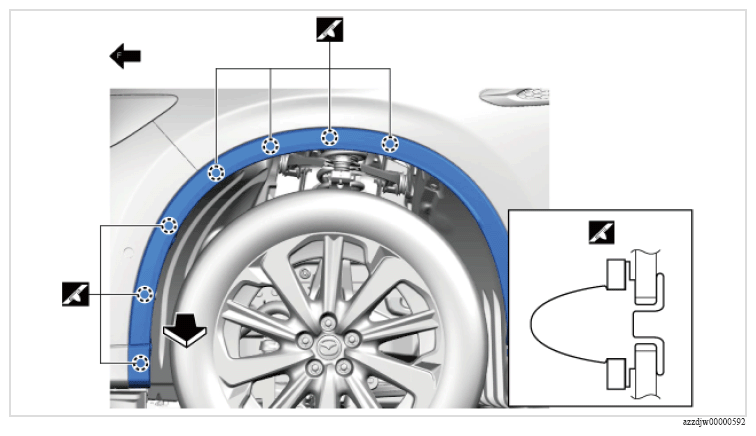

  1. Partially peel back the front over fender upper until the fasteners can be removed as shown in the figure.
    • The figure shows the left side (same as right side).
    G16691889Courtesy of MAZDA MOTORS CORP.
  2. Remove the fasteners.
