Remove oil pan: Notes

WARNING: This page is about a different variant/trim than selected.

Remove in the order indicated in the table.

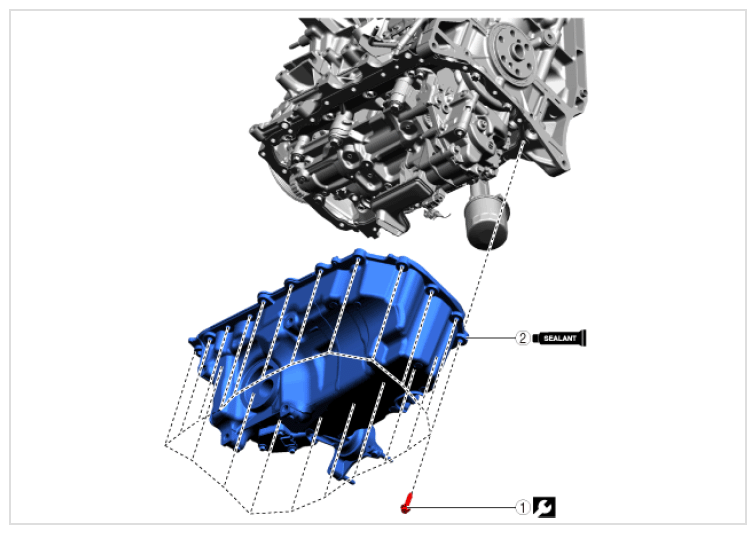

Fig 1: Oil Pan And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

Step	Part name
1	Bolt (See Bolt removal note ) (See Bolt Installation Note )	-	23 N.m {2.35 kgf.m, 16.95 ft.lb}
2	Oil pan (See OIL PAN INSTALLATION NOTE )	TB1217D	-
