Bolt removal note

WARNING: This page is about a different variant/trim than selected.

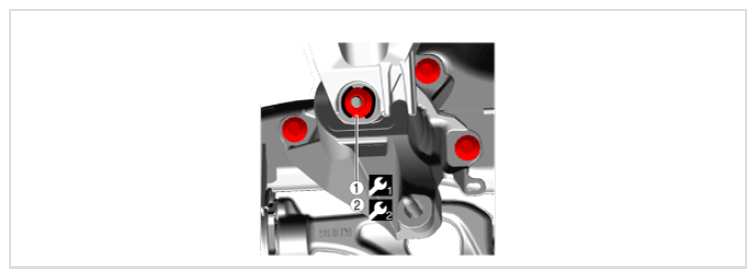

Install the nuts in the order shown in the figure below.

If the alignment marks have deviated, align them by slightly moving the engine, and temporarily tighten the nuts.

Fig 1: Engine Mount Nuts Tightening Sequence With Torque Specification

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATION

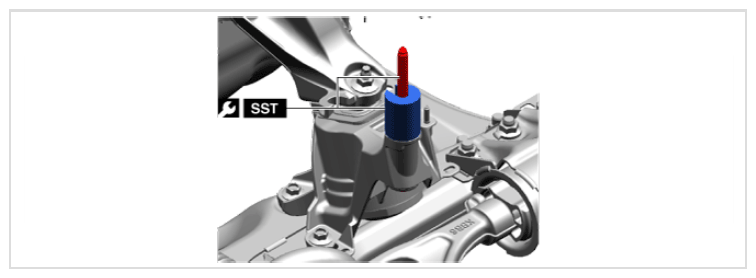

Install the SST in the order shown in the figure below.

Fig 2: SST Nut With Torque Specification

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	49 JP01 1A0
	83 N.m {8.45 kgf.m, 61.05 ft.lb}
