Remove Front Differential: Notes
WARNING: This page is about a different variant/trim than selected.

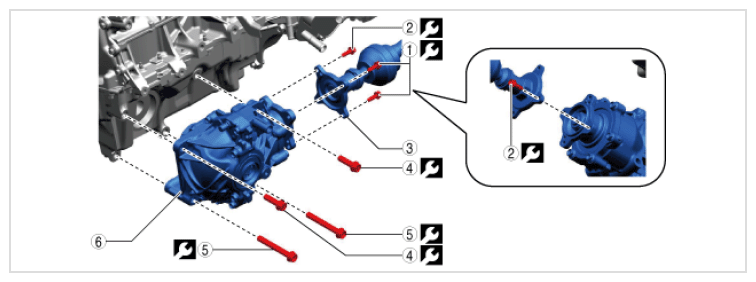

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATION
| Step | Part name | |
|---|---|---|
| 1 | Bolt A | 26 N.m {2.65 kgf.m, 19.2 ft.lb} |
| 2 | Bolt B | 26 N.m {2.65 kgf.m, 19.2 ft.lb} |
| 3 | Front propeller shaft (See Front propeller shaft installation note ). |
- |
| 4 | Bolt C | 76.5 N.m {7.8 kgf.m, 56.4 ft.lb} |
| 5 | Bolt D | 76.5 N.m {7.8 kgf.m, 56.4 ft.lb} |
| 6 | Front differential (See Front differential installation note ). |
- |
