Air Cleaner Removal/Installation: Notes

Open the capsule cover. (See CAPSULE COVER OPEN/CLOSE [H3T] .)
Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the mass air flow (MAF) sensor/intake air temperature (IAT) sensor no. 1. (See MASS AIR FLOW (MAF) SENSOR/INTAKE AIR TEMPERATURE (IAT) SENSOR NO. 1 REMOVAL/INSTALLATION [H3T] .)

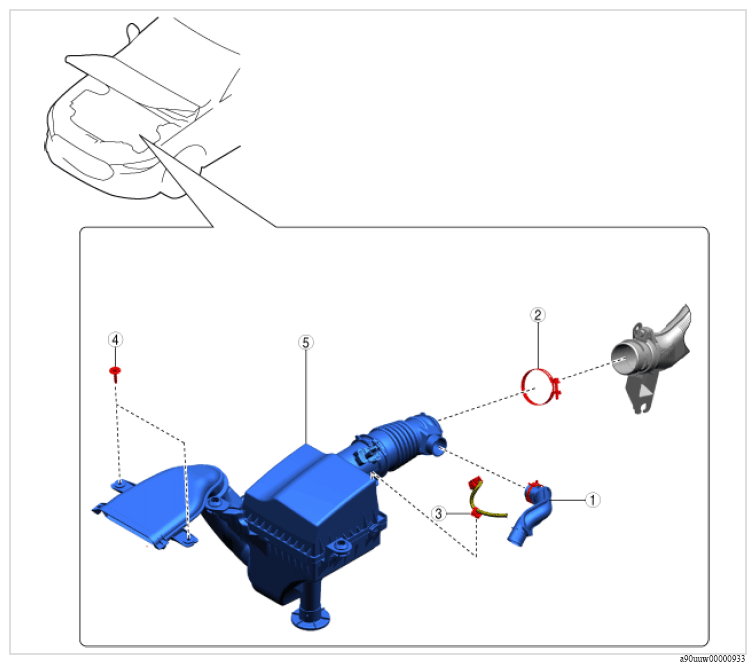

Remove in the order indicated in the table.

G16702166

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Hose (See HOSE CONNECTION NOTE )	-
2	Hose clamp	3 N.m {30 kgf.cm, 26 in.lbf}
3	Harness clip	-
4	Bolt	9.5 N.m {97 kgf.cm, 84 in.lbf}
5	Air cleaner component	-

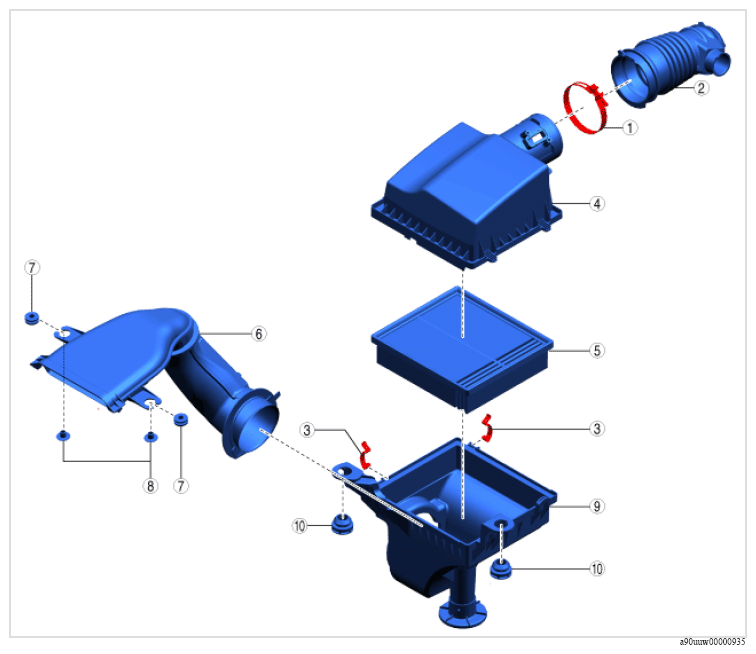

Remove in the order indicated in the table.

G16702167

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Hose clamp	3 N.m {30 kgf.cm, 26 in.lbf}
2	Air hose	-
3	Clip	-
4	Air cleaner cover	-
5	Air cleaner element	-
6	Fresh-air duct (See FRESH-AIR DUCT REMOVAL NOTE )	-
7	Spacer	-
8	Rubber mount	-
9	Air cleaner case	-
10	Rubber mount	-

Install in the reverse order of removal.
