Hose connection note

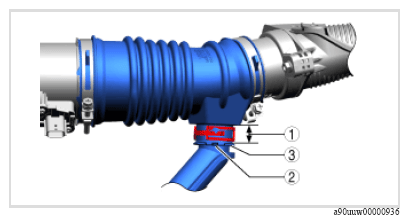

  1. Connect the hose shown in the figure.
G16702168Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
1 Fitted to recess are around entire perimeter
2 Convex of the hose
3 Recess of the air hose
