Fresh-air duct removal note

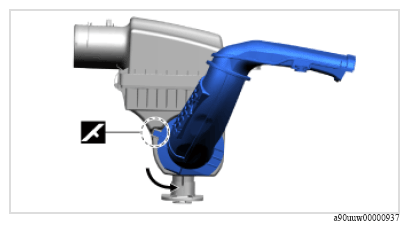

  1. While moving the tabs in the direction shown in the figure, rotate the fresh-air duct.
    G16702169Courtesy of MAZDA MOTORS CORP.
  2. Remove the fresh-air duct.
