Driver-side Front Heat Duct No. 1

Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
2. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
6. Cup holder (without wireless charger (Qi)) (See CUP HOLDER REMOVAL/INSTALLATION WITHOUT WIRELESS CHARGER (Qi) .)
7. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
9. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
10. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
11. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
12. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
13. Passenger-side decoration panel (See PASSENGER-SIDE DECORATION PANEL REMOVAL/INSTALLATION .)
14. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
15. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
16. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
17. Driver-side front heat duct No. 2 (See DRIVER-SIDE FRONT HEAT DUCT NO. 2 .)
18. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWOSTEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
19. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
20. Upper column cover (See UPPER COLUMN COVER REMOVAL/INSTALLATION .)
21. Lower column cover (See LOWER COLUMN COVER REMOVAL/INSTALLATION .)
22. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
23. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .)
24. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
25. Steering column component (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

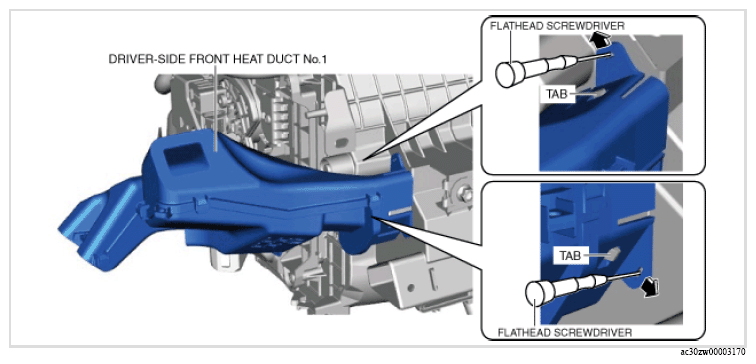

Insert a flathead screwdriver in the position shown in the figure, lift it up in the direction of the arrows.

Courtesy of MAZDA MOTORS CORP.
Detach the tabs and remove the driver-side front heat duct No. 1.
Install in the reverse order of removal.
