Rear Console Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    2. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    5. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    6. Cup holder (without wireless charger (Qi)) (See CUP HOLDER REMOVAL/INSTALLATION WITHOUT WIRELESS CHARGER (Qi)  .)
    7. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    8. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)

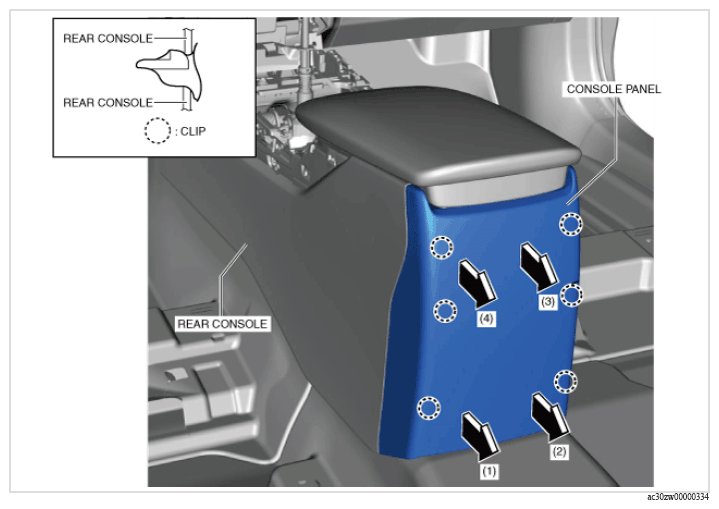

  3. Move the console panel in the order of arrows (1), (2), (3), and (4) shown in the figure, and detach the clips.
    G16376953Courtesy of MAZDA MOTORS CORP.

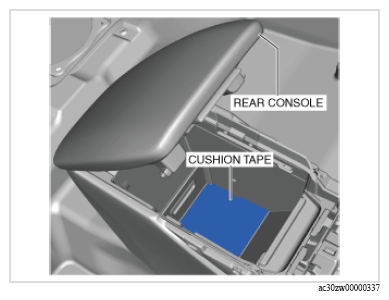

  4. Remove the cushion tape.
    G16376954Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolts.
    Fig 1: Rear Console And Bolts With Torque Specification
    G16376955Courtesy of MAZDA MOTORS CORP.

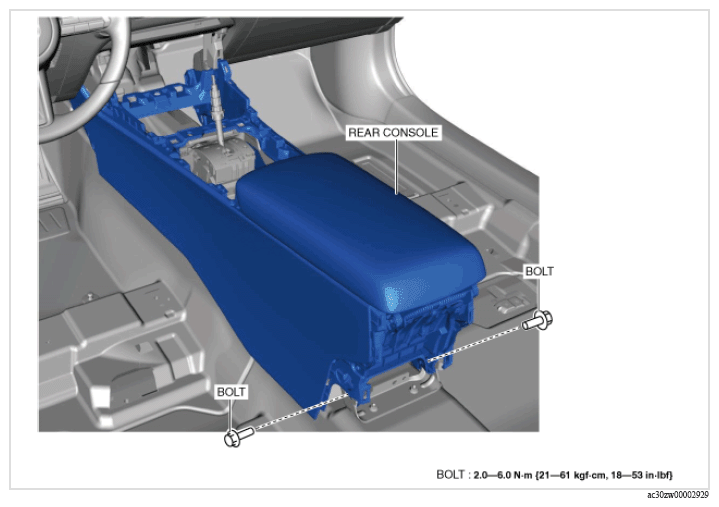

  6. Remove the bolts.
    Fig 2: Rear Console And Bolts With Torque Specification
    G16376956Courtesy of MAZDA MOTORS CORP.

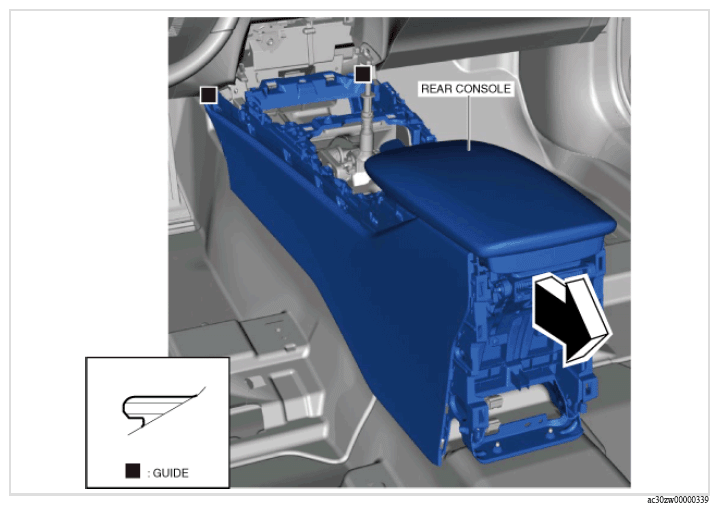

  7. Move the rear console in the direction of the arrow shown in the figure, detach the guides from the center lower panel, and remove the rear console.
    G16376957Courtesy of MAZDA MOTORS CORP.
  8. When removing the rear console bracket No. 1, perform the following procedure:
    1. Remove the rear vent duct No. 2. (with rear vent duct) (See REAR VENT DUCT No. 2. REMOVAL/INSTALLATION .)
    2. Remove the rear vent duct No. 1. (with rear vent duct) (See REAR VENT DUCT No. 1. REMOVAL/INSTALLATION .)

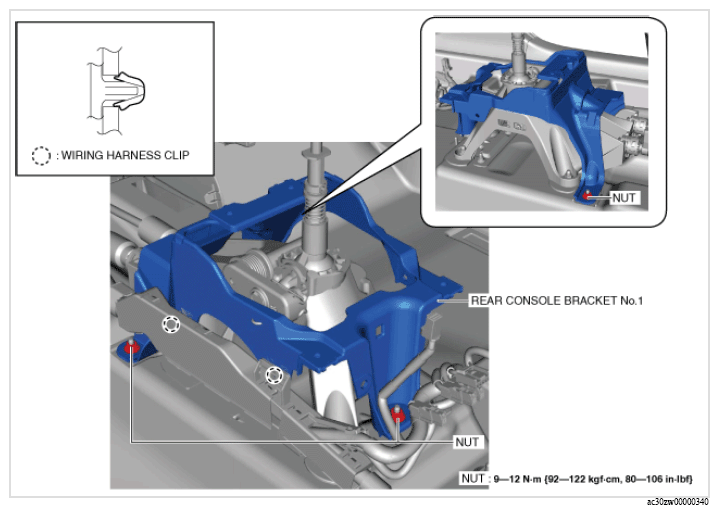

    3. Remove the wiring harness clips.
      Fig 3: Rear Console Bracket No. 1, Wiring Harness Clips And Nuts With Torque Specification
      G16376958Courtesy of MAZDA MOTORS CORP.
    4. Remove the nuts.
    5. Remove the rear console bracket No. 1.
  9. Install in the reverse order of removal.
    NOTE:
