- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
- Remove the charcoal canister (sub) component. (See CHARCOAL CANISTER REMOVAL/INSTALLATION (VIN Y) .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

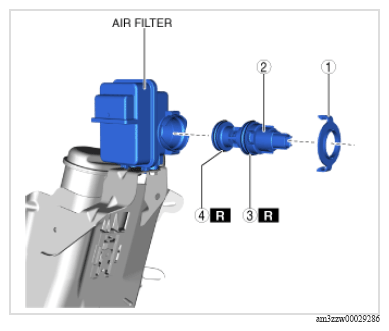

CANISTER VENT (CV) SOLENOID VALVE COMPONENT OPERATIONS
| Component No. | Refer to |
|---|---|
| 1 | Blind cap |
| 2 | CV solenoid valve (See CV Solenoid Valve Removal Note .) (See CV Solenoid Valve Installation Note .) |
| 3 | O-ring No. 1 |
| 4 | O-ring No. 2 |
