CV Solenoid Valve Removal Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Seal will be tight. Be careful not to damage the CV solenoid valve when removing the CV soleonoid valve.

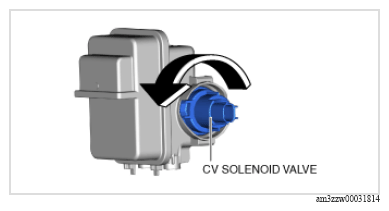

- Turn the CV solenoid valve counter-clockwise.
 Courtesy of MAZDA MOTORS CORP.
|
- Pull the CV solenoid valve straight out to remove.
