CV Solenoid Valve Installation Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Be careful not to damage the CV solenoid valve when installing the CV soleonoid valve.

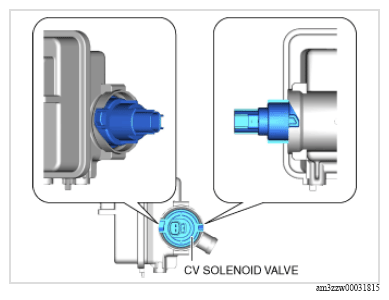

- Insert the CV solenoid valve as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
- Press in the CV solenoid valve to be seated.
