ECT Sensor No. 2

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front under cover No. 1 and the front under cover No. 2. (See FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .) (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT (VIN Y) .)
  4. Disconnect the ECT sensor No. 2 connector.
  5. Disconnect the hoses shown in the figure.
    G16372930Courtesy of MAZDA MOTORS CORP.

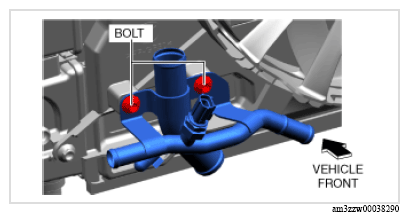

  6. Remove the bolts shown in the figure and remove the water pipe. (See COOLING FAN MOTOR REMOVAL/INSTALLATION (VIN Y) .)
    G16372931Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the vise is tightened with excessive force, it could deform or damage the water pipe. When securing the water pipe in a vise, be careful not to deform or damage the water pipe.

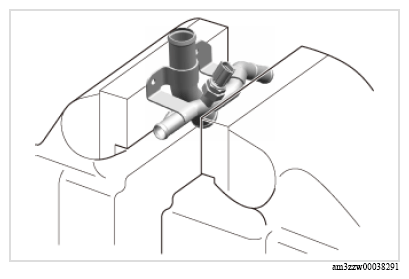

  7. Secure the water pipe in a vise.
    G16372932Courtesy of MAZDA MOTORS CORP.
  8. Remove ECT sensor No. 2 using the SST with the water pipe secured using a wrench.
    Fig 1: ECT Sensor No. 2 With Torque Specification
    G16372933Courtesy of MAZDA MOTORS CORP.
  9. Install in the reverse order of removal.
  10. Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT (VIN Y) .)
