Dashboard Removal

Replacement part

Bolt
Quantity: 1
Location use: Dashboard
WARNING:
  1. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    2. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    3. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    4. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    8. Passenger-side knee air bag module (with passenger-side knee air bag module) (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)
    9. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    10. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    11. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    12. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    13. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    14. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    15. Cup holder (without wireless charger (Qi)) (See CUP HOLDER REMOVAL/INSTALLATION .)
    16. Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION .)
    17. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    18. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    19. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    20. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)
    21. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    22. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    23. Lower column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    24. Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)
    25. Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    26. Clock spring (See CLOCK SPRING REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA/ISRAEL SPEC.] .)
    27. Light switch (See LIGHT SWITCH REMOVAL/INSTALLATION .)
    28. Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION .)
    29. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    30. Steering wheel and column (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    31. Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
    32. Center speaker grille (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
    33. Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION .)
    34. Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
    35. Audio panel (See AUDIO PANEL REMOVAL/INSTALLATION .)
    36. Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [FULL-AUTO AIR CONDITIONER] .) (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
    37. Dashboard side cover (See DASHBOARD SIDE COVER REMOVAL/INSTALLATION .)
    38. Rear heat duct No. 1 (See REAR HEAT DUCT REMOVAL/INSTALLATION .)
    39. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    40. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Disconnect the connectors and remove wiring harness clips A, B and C.
    G13179389Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connectors.
    G13179390Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connectors and remove wiring harness clip.
    G13179391Courtesy of MAZDA MOTORS CORP.
  6. Remove the bolt.
    G13179392Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the connectors.
  8. Remove the bolts and nuts shown in the figure below.
    G13179393Courtesy of MAZDA MOTORS CORP.
  9. Remove the dashboard bracket.
  10. Remove the hose.
    G13179394Courtesy of MAZDA MOTORS CORP.
  11. Remove the bolts.
    G13179395Courtesy of MAZDA MOTORS CORP.
  12. To prevent scratches or damage, affix protective tape to the position shown in the figure below of the windshield.
    G13179396Courtesy of MAZDA MOTORS CORP.
  13. Remove the bolt.
    G13179397Courtesy of MAZDA MOTORS CORP.
  14. Move the dashboard in the direction of the arrow shown in the figure below, then remove the guides.
    G13179398Courtesy of MAZDA MOTORS CORP.

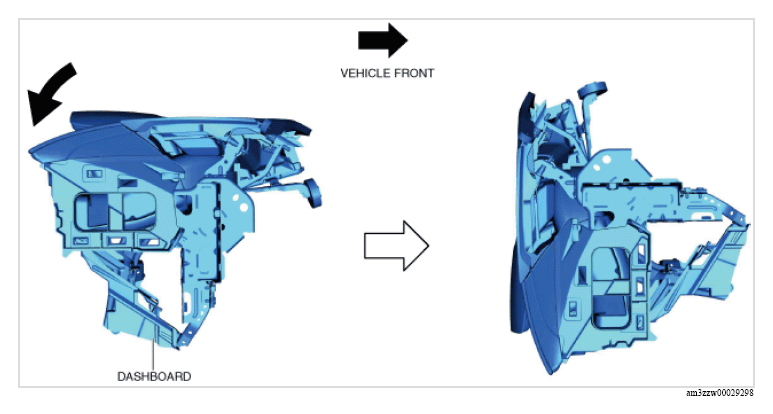

  15. Rotate the dashboard in the direction shown in the figure below.
    G13179399Courtesy of MAZDA MOTORS CORP.
  16. Take the dashboard off from the front driver-side door or front passenger-side door opening.
