Oil Pipe No. 3 Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the front crossmember under cover. (See FRONT CROSSMEMBER UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the battery wiring harness clip.

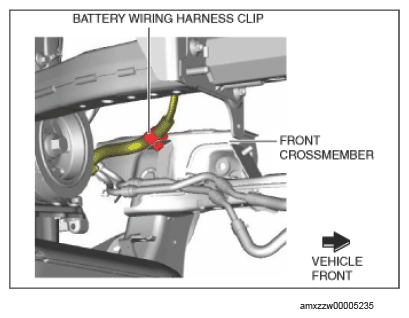

    G14589373Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
    Fig 1: Oil Pipe No. 3 Bolts With Torque Specification

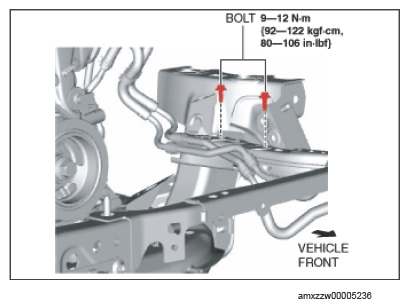

    G14589374Courtesy of MAZDA MOTORS CORP.
  5. Remove the oil pipe No. 3.

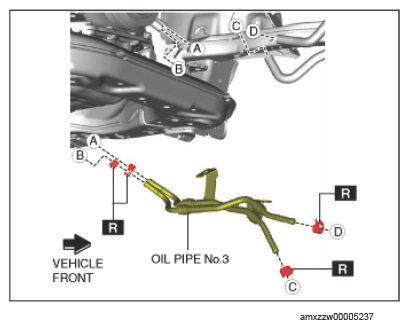

    G14589375Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal. (See OIL HOSE INSTALLATION NOTE .)
  7. Inspect for oil leakage from the oil pipes and oil hoses.
  8. Inspect the ATF level and condition. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .)
