Front Under Cover Removal/Installation

Lift up the vehicle.

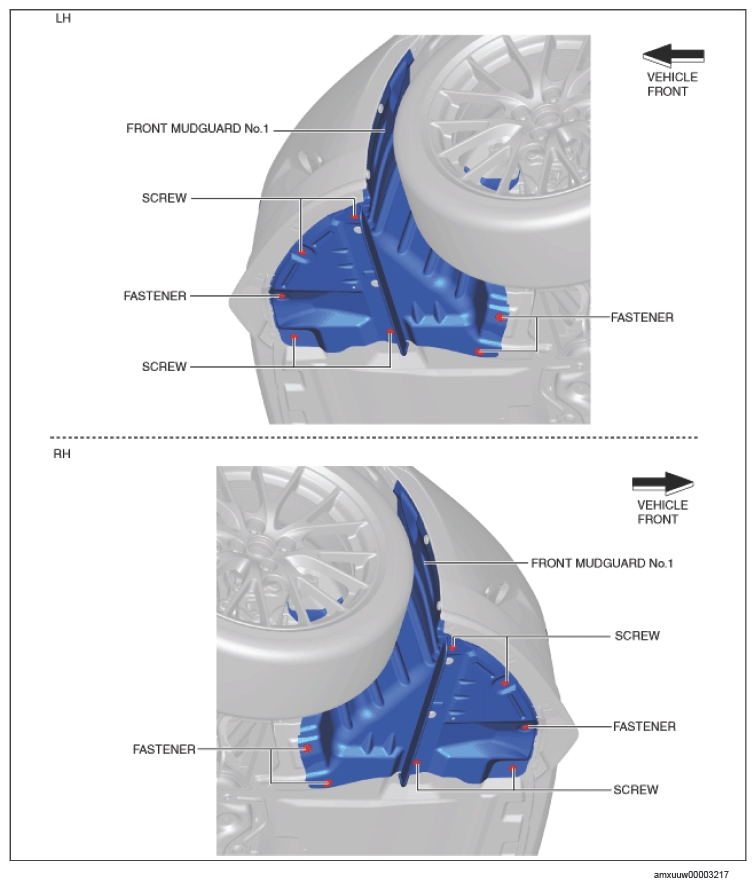

Remove the screws and fasteners and partially peel back front mudguard No. 1.

Courtesy of MAZDA MOTORS CORP.

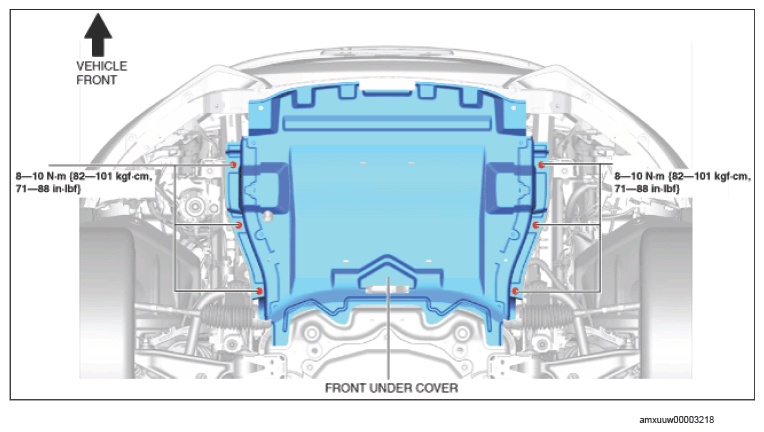

Remove the bolts.

Fig 1: Front Under Cover Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

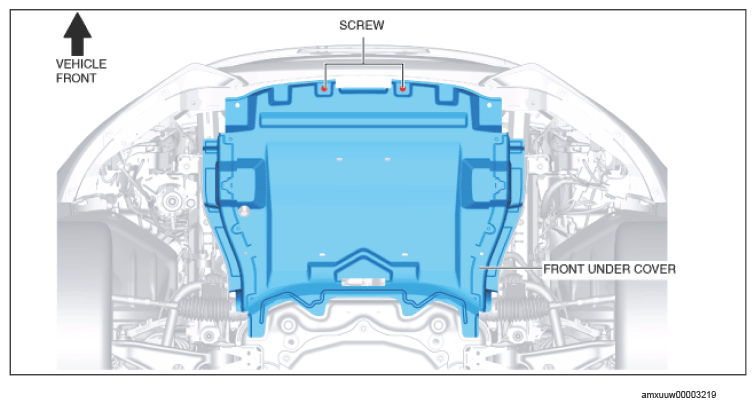

Remove the screws.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts and fasteners.

Fig 2: Front Under Cover Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.

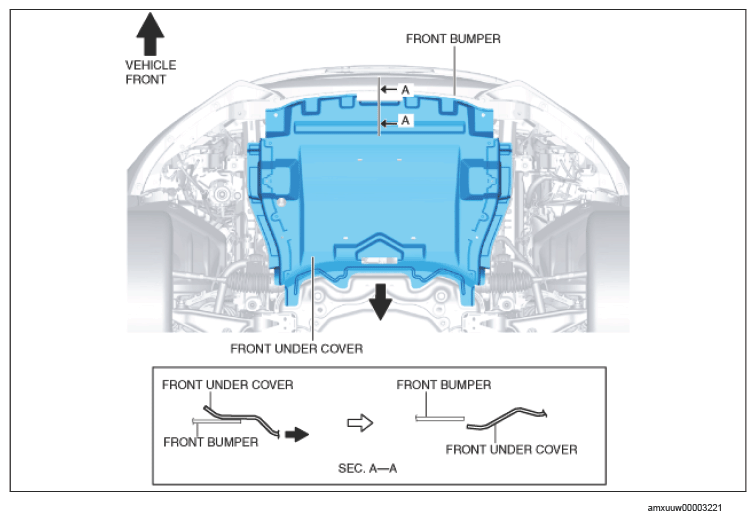

Move the front under cover in the direction of the arrow shown in the illustration and remove it.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
