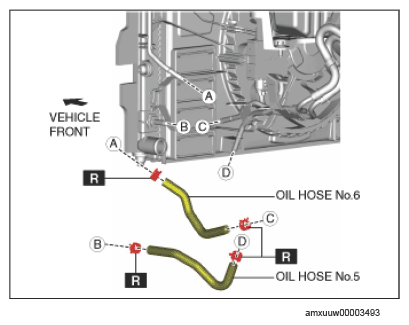

Oil Hose No. 5 and No. 6 Removal/Installation
WARNING: This page is about a different variant/trim than selected.
- Remove the front under cover. (See FRONT UNDER COVER REMOVAL/INSTALLATION .)
- Remove the oil hose No. 5 and No. 6.
- Install in the reverse order of removal. (See OIL HOSE INSTALLATION NOTE .) (See OIL HOSE NO. 5 (RADIATOR SIDE) INSTALLATION NOTE .)
- Inspect for oil leakage from the oil pipes and oil hoses.
- Inspect the ATF level and condition. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSMISSION FLUID (ATF) LEVEL ADJUSTMENT .)
