No. 4 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Slots have been adopted for the No. 4 engine mount bracket installation holes. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount bracket, engine noise or vibration could increase. Before removing the No. 4 engine mount bracket, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  2. Remove the air cleaner, air hose and fresh air duct as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION ).
  3. Remove the PCM component. (See PCM REMOVAL/INSTALLATION ).
  4. Remove the battery and battery tray. (See BATTERY REMOVAL/INSTALLATION ).
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

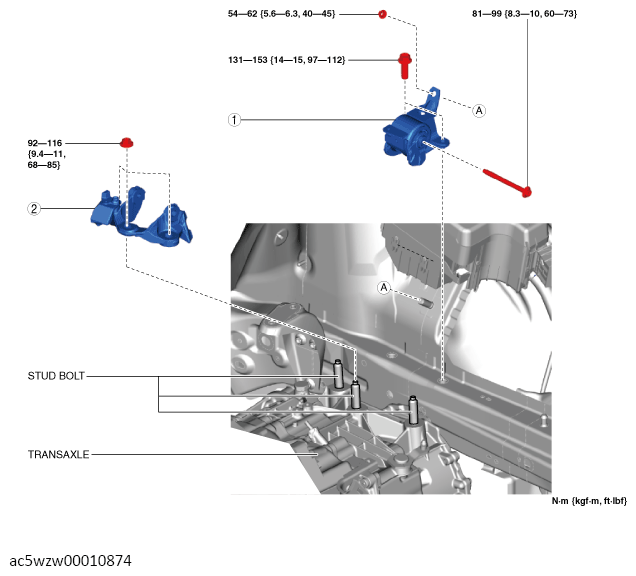

    Fig 1: No. 4 Engine Mount Components With Torque Specification
    G13671996Courtesy of MAZDA MOTORS CORP.
PART SPECIFICATION

1 No. 4 engine mount rubber
(See No. 4 engine mount rubber removal note ).
(See No. 4 engine mount rubber installation note ).
2 No. 4 engine mount bracket
(See No. 4 engine mount bracket removal note  ).
(See No. 4 engine mount bracket installation note ).
