No. 4 engine mount rubber removal note

WARNING: This page is about a different variant/trim than selected.

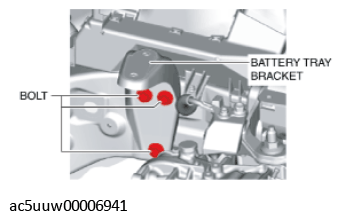

  1. Loosen the battery tray bracket installation bolts.
    G11429812Courtesy of MAZDA MOTORS CORP.

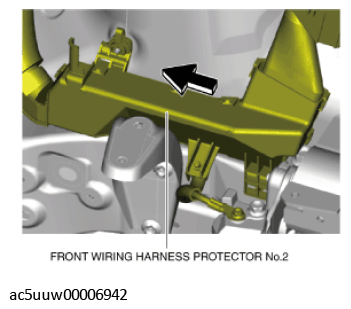

  2. Set front wiring harness protector No. 2 aside in the direction of the arrow shown in the figure. (See FRONT WIRING HARNESS PROTECTOR REMOVAL/INSTALLATION ).
    G11429813Courtesy of MAZDA MOTORS CORP.
  3. Remove the front undercover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION ).

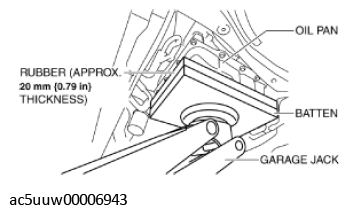

    CAUTION:
    • To prevent damage to the transaxle, support the transaxle using the following methods.
      • Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.
    G11429815Courtesy of MAZDA MOTORS CORP.
  4. Before removing the No. 4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.
  5. Remove the No. 4 engine mount rubber.
