No. 4 engine mount bracket removal note

WARNING: This page is about a different variant/trim than selected.

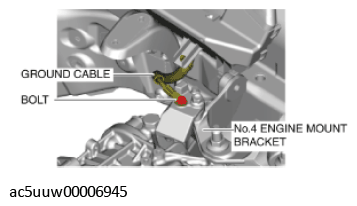

  1. Remove the bolt shown in the figure and set the ground cable aside.
    G11429817Courtesy of MAZDA MOTORS CORP.

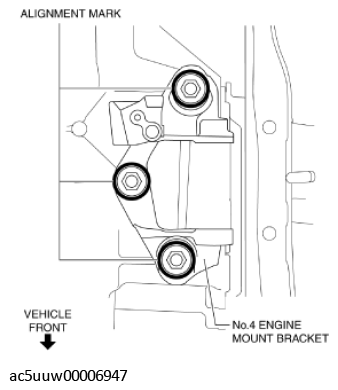

  2. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.
    G11429819Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the outline of the nut is framed on the bracket side.
  3. Remove the No. 4 engine mount bracket.
