Cooling System Location Index
WARNING: This page is about a different variant/trim than selected.

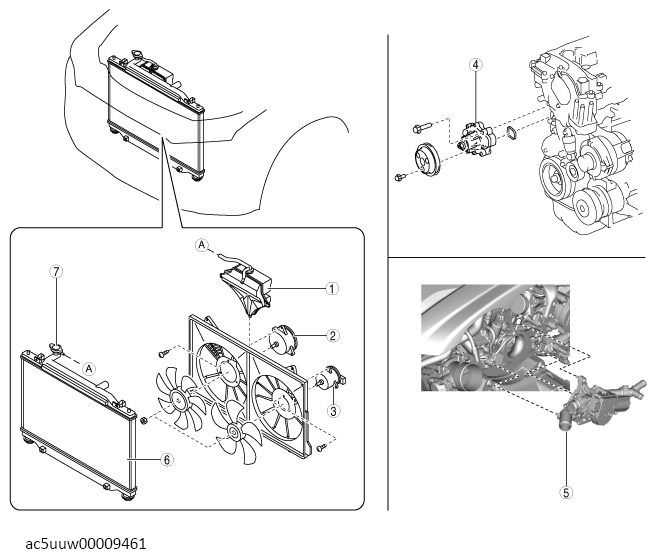

PART DESCRIPTION
| 1 | Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION ). (See COOLANT RESERVE TANK REMOVAL/INSTALLATION ). |
| 2 | Cooling fan motor No. 2 (See COOLING FAN MOTOR REMOVAL/INSTALLATION ). (See COOLING FAN MOTOR INSPECTION ). |
| 3 | Cooling fan motor No. 1 (See COOLING FAN MOTOR REMOVAL/INSTALLATION ). (See COOLING FAN MOTOR INSPECTION ). |
| 4 | Water pump (See WATER PUMP REMOVAL/INSTALLATION ). |
| 5 | Coolant control valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION ). (See COOLANT CONTROL VALVE INSPECTION ). |
| 6 | Radiator (See ENGINE COOLANT PROTECTION INSPECTION ). (See ENGINE COOLANT REPLACEMENT ). (See ENGINE COOLANT LEAKAGE INSPECTION ). (See RADIATOR REMOVAL/INSTALLATION ). |
| 7 | Cooling system cap (See COOLING SYSTEM CAP INSPECTION ). |
