Cooling Fan Motor Inspection

WARNING: This page is about a different variant/trim than selected.

Part Inspection

Verify that the battery is fully charged. (See BATTERY INSPECTION ).
Disconnect the cooling fan motor connector (2 terminals).

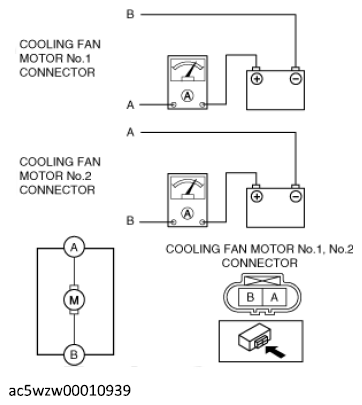

Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Verify that each cooling fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
Cooling fan motor No. 1, No. 2 standard current

4.5-8.5 A [12 V]
