Charge Air Cooler Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
Replacement Part
| O-ring Quantity: 1 Location of use: Charge air cooler air outlet pipe |
O-ring Quantity: 1 Location of use: Charge air cooler air inlet pipe |
Oil and Chemical Type
| Engine oil |
| Type: Recommended oil |
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
- Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION ).

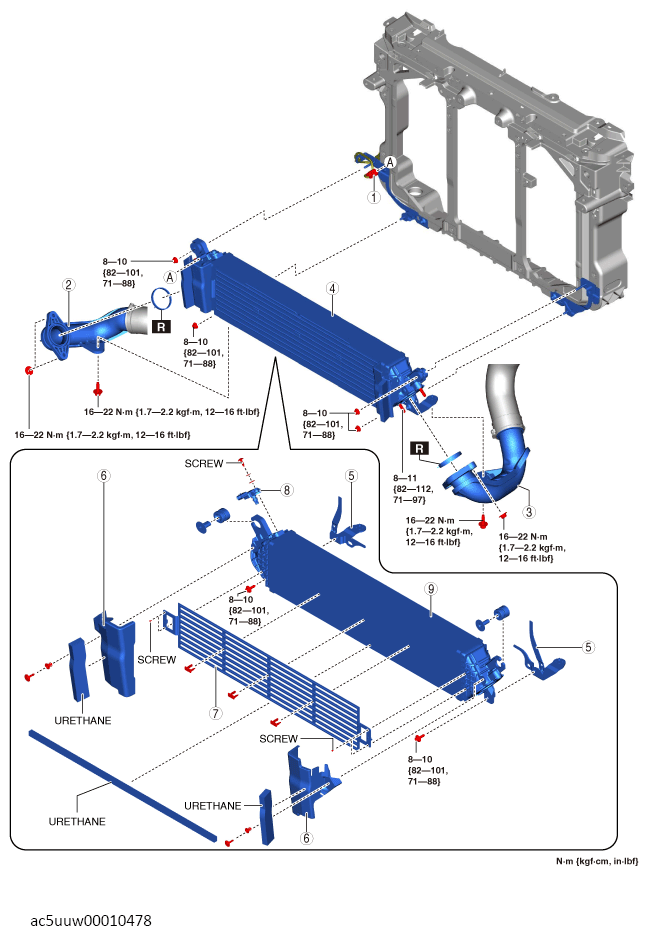

- Remove in the order shown in the figure.
- Install in the reverse order of removal.
PART DESCRIPTION
| 1 | Boost pressure sensor/boost air temperature sensor connector |
| 2 | Charge air cooler outlet pipe (See Charge Air Cooler Inlet Pipe, Charge Air Cooler Outlet Pipe Installation Note ). |
| 3 | Charge air cooler inlet pipe (See Charge Air Cooler Inlet Pipe, Charge Air Cooler Outlet Pipe Installation Note ). |
| 4 | Charge air cooler component |
| 5 | Bracket |
| 6 | Guide plate |
| 7 | Protector |
| 8 | Boost pressure sensor/boost air temperature sensor (See BOOST PRESSURE SENSOR/BOOST AIR TEMPERATURE SENSOR REMOVAL/INSTALLATION ). |
| 9 | Charge air cooler |
