Front Bumper Removal/Installation

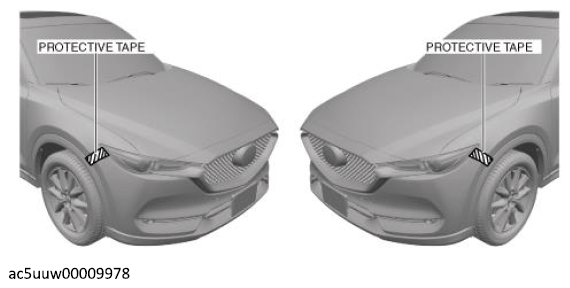

  1. Affix the protective tape to the position shown in the figure to prevent scratches and damage.
    G12183637Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION ).
  3. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION ).

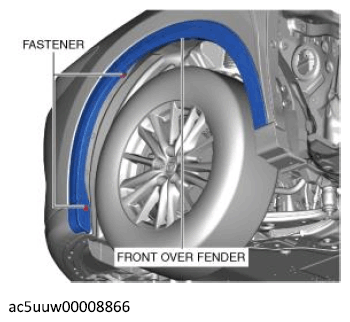

  4. Remove the fasteners.
    G12183638Courtesy of MAZDA MOTORS CORP.

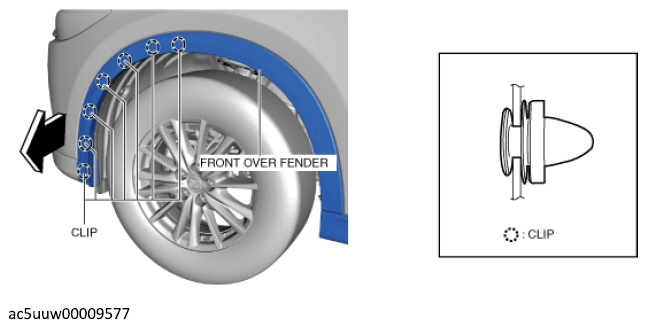

  5. Pull the front over fender in the direction of the arrow shown in the figure and disengage the clips.
    G12183639Courtesy of MAZDA MOTORS CORP.

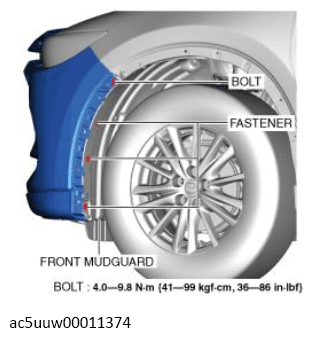

  6. Remove the bolt and fasteners.
    Fig 1: Front Mudguard Bolt With Torque Specification
    G13675654Courtesy of MAZDA MOTORS CORP.

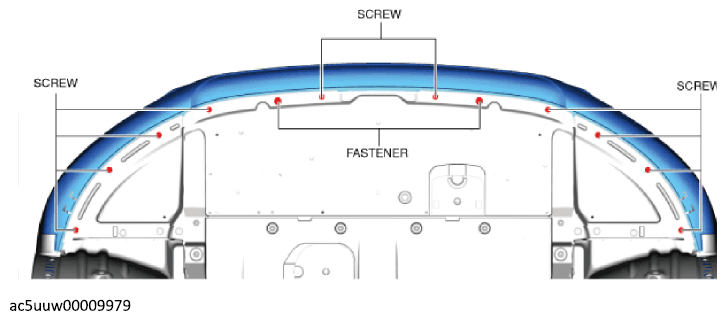

  7. Remove the screws and fasteners.
    G12183641Courtesy of MAZDA MOTORS CORP.

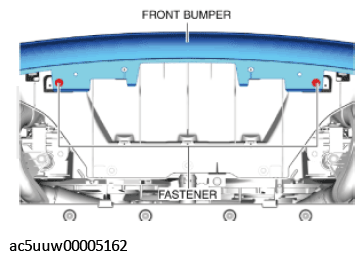

  8. Slightly bend back the front under cover No. 1 and remove the fasteners.
    G11425851Courtesy of MAZDA MOTORS CORP.

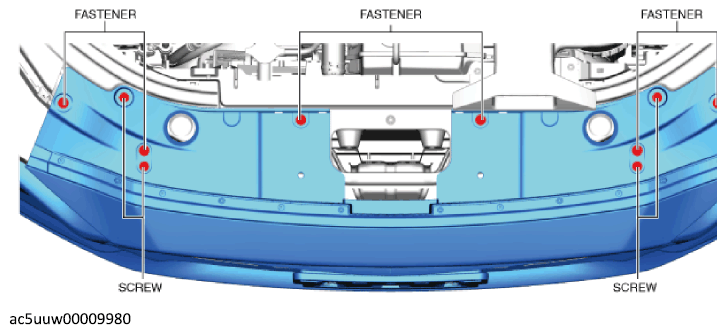

  9. Remove the screws and fasteners.
    G12183643Courtesy of MAZDA MOTORS CORP.

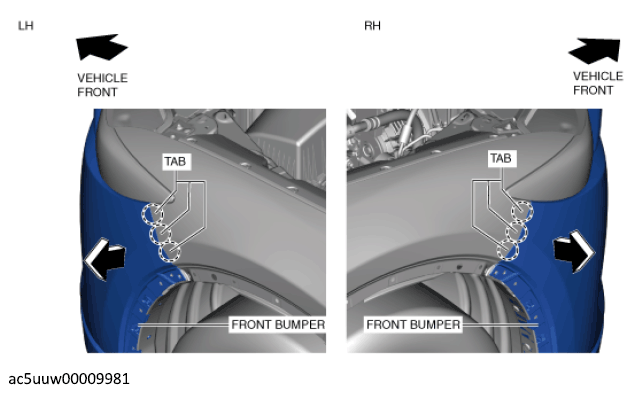

  10. Pull the rear end of the front bumper in the direction of the arrow shown in the figure and detach the front bumper from the front bumper slider while removing the tabs.
    CAUTION:
    • Carefully remove the front bumper from the front bumper slider. If the front bumper is removed from the front bumper slider with excessive force, the front bumper hooks may be damaged because the front bumper and the front bumper slider are engaged firmly.
    • Detach the front bumper hooks from the front bumper slider using two people, one person supports the front bumper. If the front bumper hooks are detached from the front bumper without supporting the front bumper, it may fall off and be damaged.
    G12183644Courtesy of MAZDA MOTORS CORP.

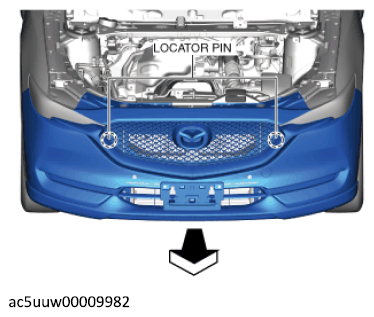

  11. Pull the front bumper in the direction of the arrows shown in the figure and pull out the locator pin.
    G12183645Courtesy of MAZDA MOTORS CORP.
  12. Disconnect the connectors.

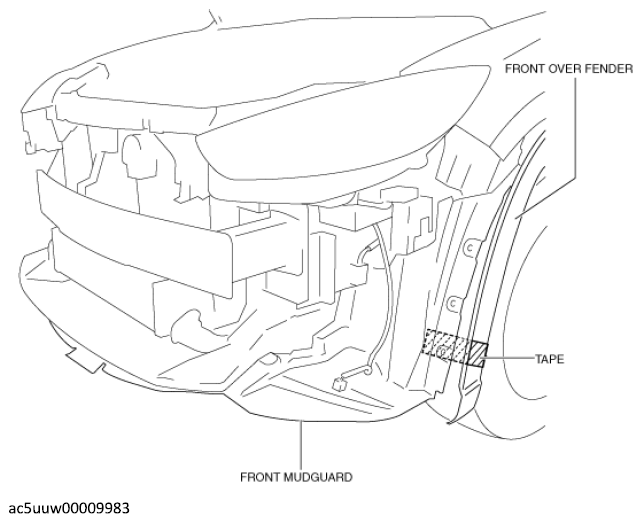

    WARNING:
    • After removing the front bumper, secure the front over fender and front mudguard with tape to prevent the front over fender from being damaged and to prevent injury.
    G12183646Courtesy of MAZDA MOTORS CORP.
  13. Install in the reverse order of removal.
  14. Perform the 360° view monitor system aiming. (with 360° view monitor system)
