Charge Air Cooler Inlet Pipe, Charge Air Cooler Outlet Pipe Installation Note

WARNING: This page is about a different variant/trim than selected.

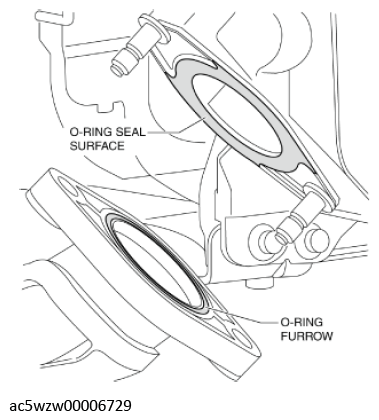

Remove foreign matter on the O-ring seal surface of charge air cooler and in the pipe furrow O-ring (sand or dust).

Courtesy of MAZDA MOTORS CORP.
NOTE:
- The color is different between the O-ring on the charge air cooler outlet pipe side and the O-ring on the charge air cooler inlet pipe side. Verify the color before installing the O-ring.

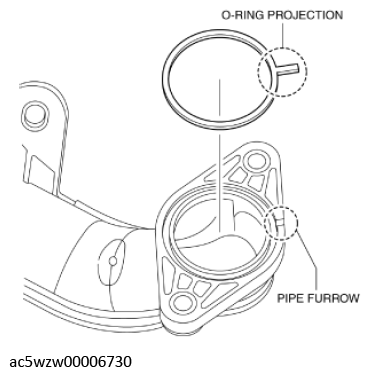

Align the O-ring projection with the pipe furrow and install the O-ring.

Courtesy of MAZDA MOTORS CORP.

Color of O-ring

Charge air cooler outlet pipe side: Blue color

Charge air cooler inlet pipe side: Black color
Temporarily tighten the bolt and nuts.

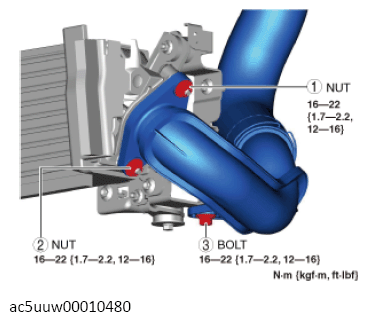

Fig 1: Charge Air Cooler Inlet Pipe Bolt And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Tighten the nuts and bolts in the order shown in the figure.
