Except U.S.A. And CANADA: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the floor under cover No. 2 (LH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

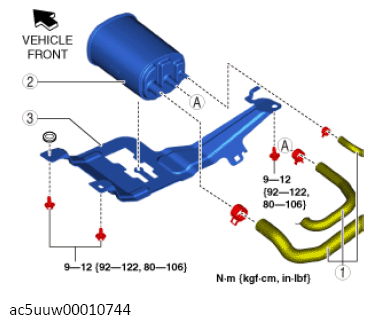

Fig 1: Charcoal Canister Components With Torque Specification (Except USA And Canada)

Courtesy of MAZDA MOTORS CORP.

PARTS DESCRIPTION

1	Evaporative hose (See EVAPORATIVE HOSE INSTALLATION NOTE .)
2	Charcoal canister (See CHARCOAL CANISTER REMOVAL NOTE .)
3	Charcoal canister bracket (See CHARCOAL CANISTER BRACKET INSTALLATION NOTE .)
