Charcoal canister bracket installation note

WARNING: This page is about a different variant/trim than selected.
  1. Hook charcoal canister bracket to the vehicle body.

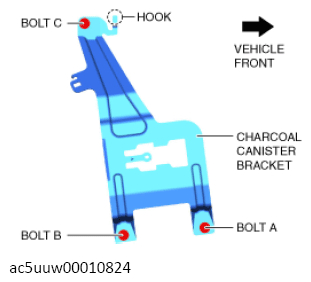

    G13112900Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt A.
  3. Temporarily tighten bolt B.
  4. Completely tighten bolt C.
  5. Completely tighten bolt B.
  6. Completely tighten bolt A.
