Charcoal canister removal note

WARNING: This page is about a different variant/trim than selected.

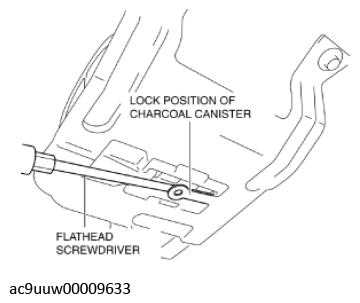

  1. Release the lock as shown in the figure.
    G11436231Courtesy of MAZDA MOTORS CORP.
  2. Remove the charcoal canister.
