Except U.S.A. and CANADA: Notes
WARNING: This page is about a different variant/trim than selected.

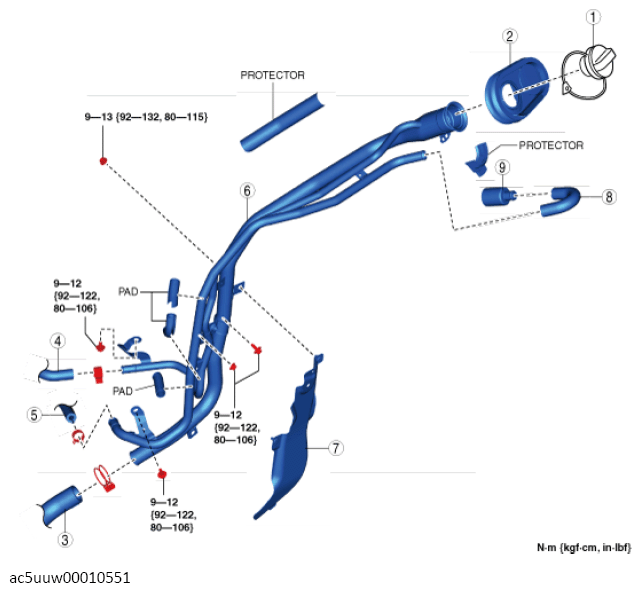

PARTS DESCRIPTION
| 1 | Fuel-filler cap |
| 2 | Dust cover (See DUST COVER REMOVAL NOTE .) |
| 3 | Joint hose (See JOINT HOSE INSTALLATION NOTE .) |
| 4 | Breather hose (See BREATHER HOSE INSTALLATION NOTE .) |
| 5 | Evaporative hose No. 1 (See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .) |
| 6 | Fuel-filler pipe (See FUEL-FILLER PIPE INSTALLATION NOTE .) |
| 7 | Fuel-filler pipe protector |
| 8 | Evaporative hose No. 2 |
| 9 | Plug |
